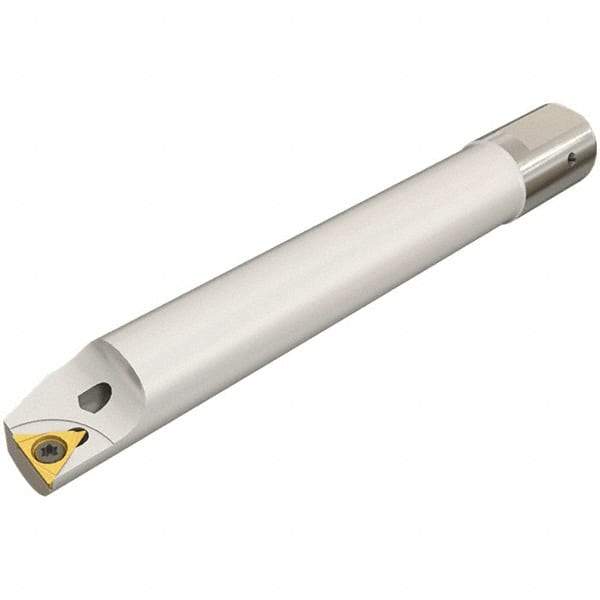

Iscar - 12mm Min Bore Diam, 94mm OAL, 16mm Shank Diam, IHAXF Indexable Boring Bar - 72mm Max Bore Depth, TPGX 73.. Insert
Item #: 05433438
Brand: Iscar
Model #: 4550628
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | IHAXF |
| Series | Itsbore |
| Minimum Bore Diameter (mm) | 12.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.4724 |
| Maximum Bore Depth (mm) | 72.00 |
| Maximum Bore Depth (Decimal Inch) | 2.8346 |
| Overall Length (mm) | 94.00 |
| Overall Length (Decimal Inch) | 3.7008 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | TPGX 73.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Maximum Bore Diameter (mm) | 14.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.5512 |
| Complete Insert Compatibility | TPGX 730-L; TPGX 730T; TPGX 731-L; TPGX 731T |
| Toolholder Material | Heavy Metal |
