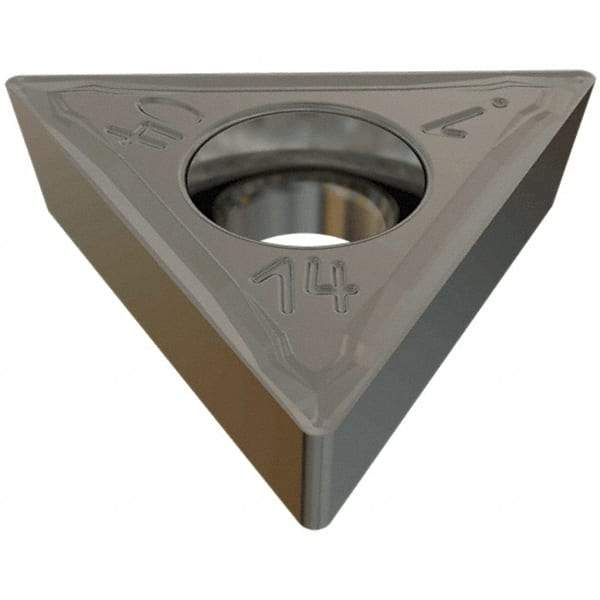

Iscar - TCMT31 14 Grade IC428 Carbide Milling Insert - TiC/Al2O3 Finish, 3/8" Inscribed Circle, 0.156" Thick, 0.41mm Corner Radius
Item #: 05433834
Brand: Iscar
Model #: 5501307
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 3-1 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC428 |
| Coating | TiC/Al2O3 |
| Chip Breaker | 14 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 60 |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Shape | Triangle |
