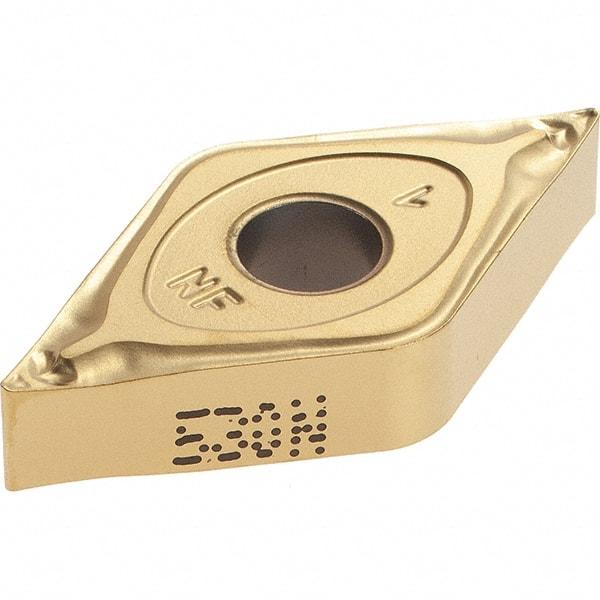

Iscar - DNMG431 NF Grade IC530N Cermet Turning Insert - TiCN/TiN Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 05560255
Brand: Iscar
Model #: 5505382
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 431 |
| Material | Cermet |
| Length (mm) | 15.49 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC530N |
| Coating | TiCN/TiN |
| Chip Breaker | NF |
| ISO Number | DNMG 431-NF |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DNMG 431-NF |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
