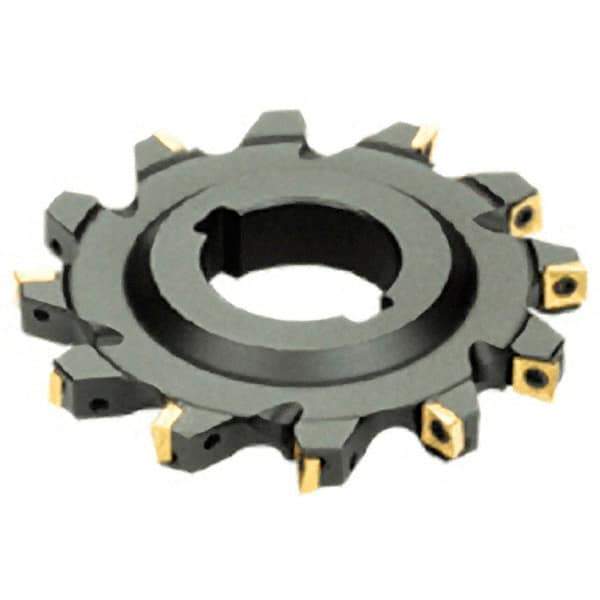

Iscar - Arbor Hole Connection, 0.3937" Cutting Width, 0.9449" Depth of Cut, 100mm Cutter Diam, 1.2598" Hole Diam, 7 Tooth Indexable Slotting Cutter - SDN Toolholder, Q/XOMT Insert
Item #: 05596549
Brand: Iscar
Model #: 3100891
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 24.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9449 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 7 |
| Toolholder Style | SDN |
| Series | Heliquad(SDN) |
| Insert Style | Q/XOMT |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
