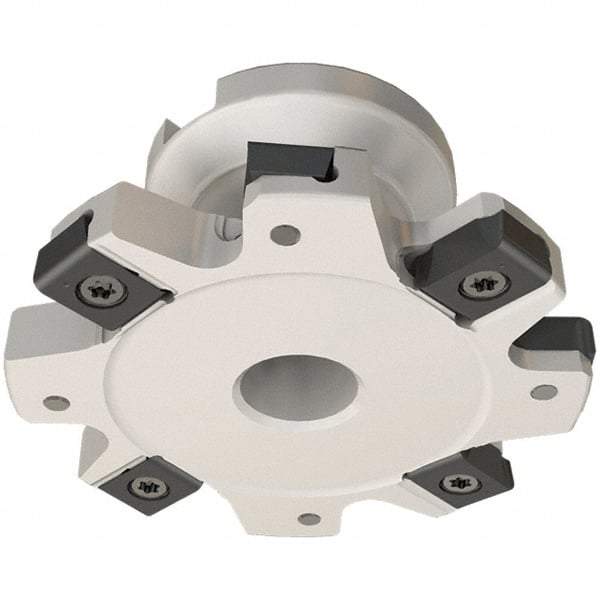

Iscar - Shell Mount B Connection, 1.07" Depth of Cut, 4" Cutter Diam, 1" Hole Diam, 5 Tooth Indexable Slotting Cutter - FDN-LN12 Toolholder, LNET Insert
Item #: 05596978
Brand: Iscar
Model #: 3103144
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Maximum Depth of Cut (Decimal Inch) | 1.0700 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 5 |
| Toolholder Style | FDN-LN12 |
| Series | TangSlot(FDN-LN12) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.2810 |
| Maximum Cutting Width (Decimal Inch) | 0.3400 |
| Hub Diameter (Decimal Inch) | 2.1600 |
