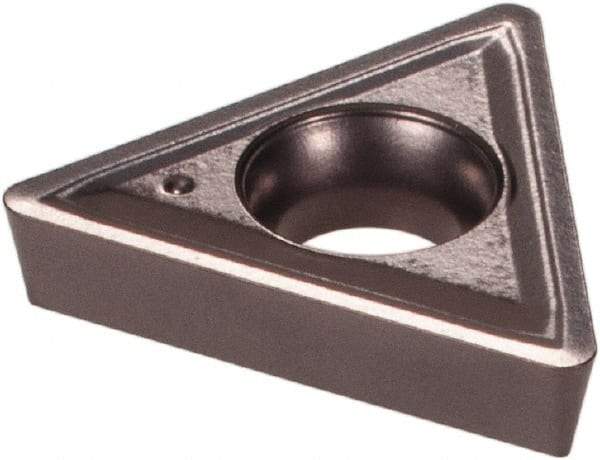

Iscar - TPMT322 Grade IC520M Carbide Milling Insert - TiCN Finish, 0.1331" Thick, 0.3748" Inscribed Circle, 0.8mm Corner Radius
Item #: 05730981
Brand: Iscar
Model #: 5600418
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 322 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC520M |
| Coating | TiCN |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Thickness (Decimal Inch) | 0.1331 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.30 |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| ISO Number | TPMT 160308 |
