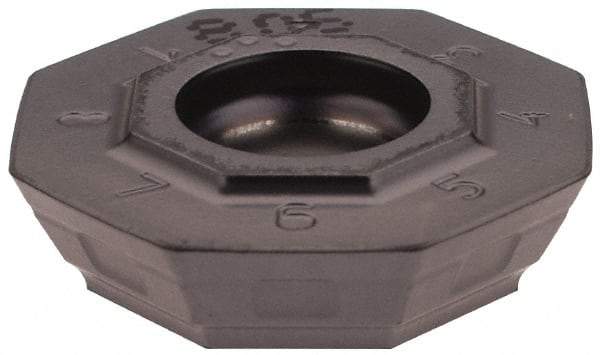

Iscar - OFMW07T3 Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.1736" Thick, 0.7173" Inscribed Circle, 1mm Corner Radius
Item #: 05801634
Brand: Iscar
Model #: 5603734
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFMW |
| Insert Size | 07T3 |
| Material | Carbide |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.7173 |
| Thickness (Decimal Inch) | 0.1736 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| ISO Number | OFMW 07T3-AETN |
