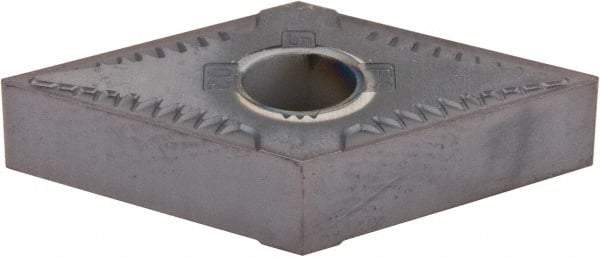

Kennametal - Turning Inserts Insert Style: DNGG Insert Size: 430.5
Item #: 05892138
Brand: Kennametal
Model #: 2229552
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Turning Inserts; Insert Style: DNGG ; Insert Size: 430.5 ; Material: Carbide ; Length (mm): 15.50 ; Length (Decimal Inch): 0.6102 ; Inscribed Circle (Decimal Inch): 0.5000
| Insert Style | DNGG |
| Insert Size | 430.5 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KC5510 |
| Coating | TiAlN |
| Material Grade | C3/C4 |
| Chip Breaker | FS |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Rake | Positive |
| Rake Angle | 12 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
