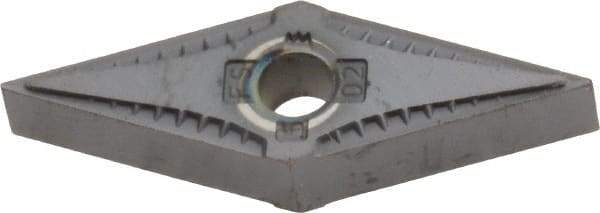

Kennametal - VNGG330.5 FS Grade KC5510 Carbide Turning Insert - TiAlN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.0079" Corner Radius
Item #: 05913264
Brand: Kennametal
Model #: 2250789
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNGG |
| Insert Size | 330.5 |
| Material | Carbide |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6539 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KC5510 |
| Coating | TiAlN |
| Material Grade | C3/C4 |
| Chip Breaker | FS |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Positive |
| Rake Angle | 12 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
