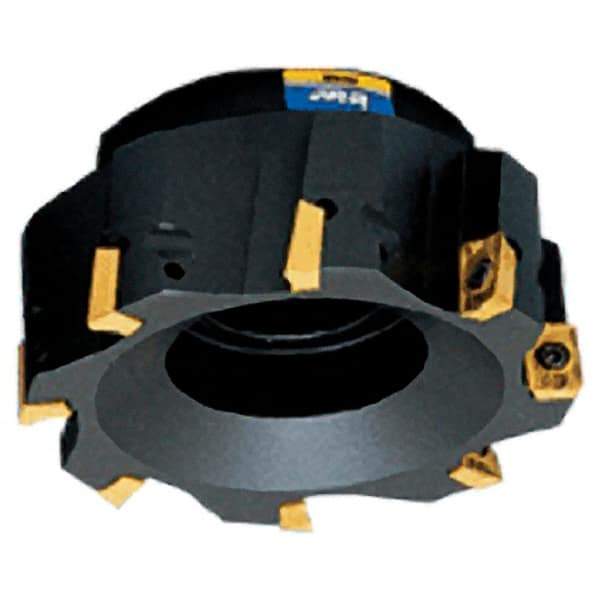

Iscar - 6 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 14.3mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, AD.. 15.. Insert Compatibility, Series Heli2000
Item #: 06029318
Brand: Iscar
Model #: 3102094
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | AD.. 15.. |
| Series | Heli2000 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 14.30 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90A-15 |
| Number of Flutes | 6 |
| Keyway Width (mm) | 14.40 |
| Cutting Edge Length (Decimal Inch) | 0.5630 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Counterbore Diameter (Decimal Inch) | 1.6930 |
| Complete Insert Compatibility | AD..15.. |
