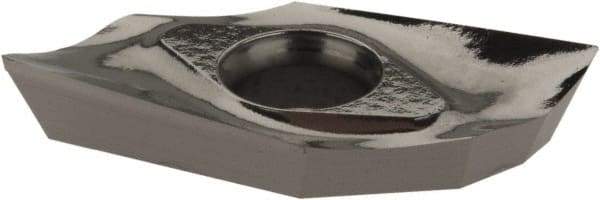

Iscar - APCR160502 P Grade IC28 Carbide Milling Insert - Uncoated, 0.1882" Thick, 0.2mm Corner Radius
Item #: 06502934
Brand: Iscar
Model #: 5699241
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APCR |
| Insert Size | 160502 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.4941 |
| Length (Decimal Inch) | 0.6654 |
| Thickness (Decimal Inch) | 0.1882 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| ISO Number | HM90 APCR 160502R-P |
