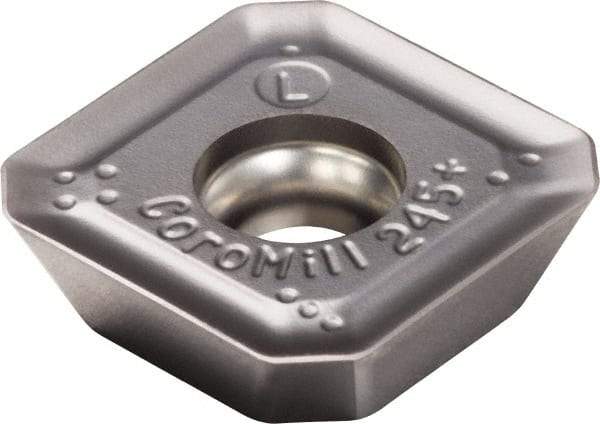

Sandvik Coromant - R24512T3 PL Grade 530 Cermet Milling Insert - Uncoated, 5/32" Thick, 13.4mm Inscribed Circle, 1.5mm Corner Radius
Item #: 06646574
Brand: Sandvik Coromant
Model #: 5743900
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | R245 |
| Insert Size | 12T3 |
| Material | Cermet |
| Manufacturer's Grade | 530 |
| Coating | Uncoated |
| Length (mm) | 10.00 |
| Inscribed Circle (mm) | 13.40 |
| Inscribed Circle (Decimal Inch) | 0.5276 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | Uncoated |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R245-12 T3 E-PL 530 |
