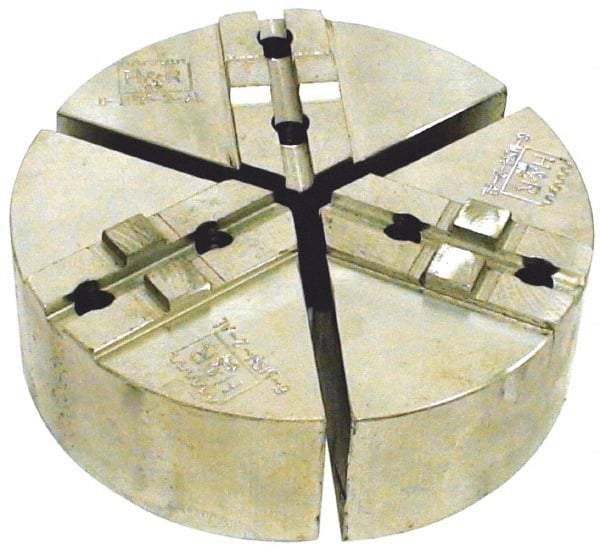

H & R Manufacturing - 8" Chuck Capacity, Tongue & Groove Attachment, Round Soft Lathe Chuck Jaw - 3 Jaws, Aluminum, 1-3/4" Btw Mount Hole Ctrs, 4" Long x 8" Wide x 2" High, 5/16" Groove
Item #: 06828917
Brand: H & R Manufacturing
Model #: HR-8MSH-2-AL
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Round |
| Material | Aluminum |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Minimum Compatible Chuck Diameter (Inch) | 8 |
| Overall Height (Inch) | 2 |
| Groove Width (Decimal Inch) | 0.3130 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.7500 |
| Tongue Width (Decimal Inch) | 0.5000 |
| Jaw End Shape | Square |
| Fastener Size (Inch) | 3/8 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 8 |
| Overall Length (Inch) | 4 |
| Material Grade | 6061 |
