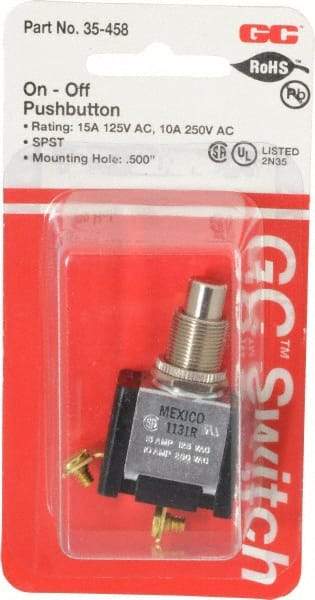

GC/Waldom - 1/2 Inch Mount Hole, Pushbutton Switch Only - Round, Chrome Pushbutton, Nonilluminated, Maintained (MA), On-Off
Item #: 07510167
Brand: GC/Waldom
Model #: 35-458
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. Applications include starting and stopping the machine.
Nonilluminated pushbuttons do not feature a light within the button.They are commonly used in areas where added light is not needed.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (Decimal Inch) | 1/2 |
| Switch Type | Pushbutton Switches Only |
| Pushbutton Shape | Round |
| Pushbutton Color | Chrome |
| Operator Illumination | NonIlluminated |
| Operation Type | Maintained (MA) |
| Switch Sequence | On-Off |
| Pushbutton Material | Metal |
| Amperage | 10 @ 250 VAC; 15 @ 125 VAC |
| Voltage | 125 VAC; 250 VAC |
| Contact Form | SPST |
| Terminal Type | Screw |
| Bushing Length (Decimal Inch) | 0.5620 |
| Standards Met | CSA; UL Recognized |
