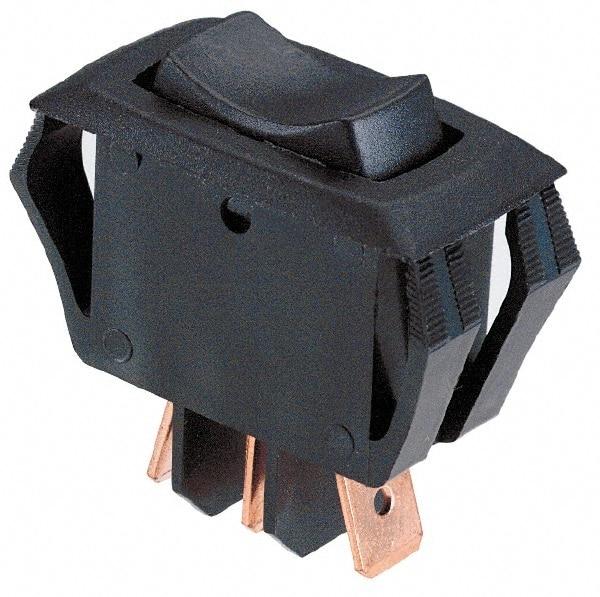

GC/Waldom - SPDT, Maintained (MA), On-On Sequence, Miniature Rocket Switch - 4 Amps at 125 Volts, 2 Amps at 250 Volts, 3/4 hp, Quick Connect & Solder, Panel Mount
Item #: 07510373
Brand: GC/Waldom
Model #: 35-602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Switch Type | Miniature |
| Switch Sequence | On-On |
| Contact Form | SPDT |
| Operation Type | Maintained (MA) |
| Terminal Type | Quick Connect; Solder |
| Maximum Amperage at 125 Volts | 4 |
| Maximum Amperage at 250 Volts | 2 |
| Horsepower (HP) | 3/4 |
| Mounting Type | Panel Mount |
| Switch Shape | Rectangle |
| Color | Black |
| Mounting Hole Length (Decimal Inch) | 0.7340 |
| Mounting Hole Width (Decimal Inch) | 0.3500 |
| Standards Met | CSA; UL; VDE Listed |
