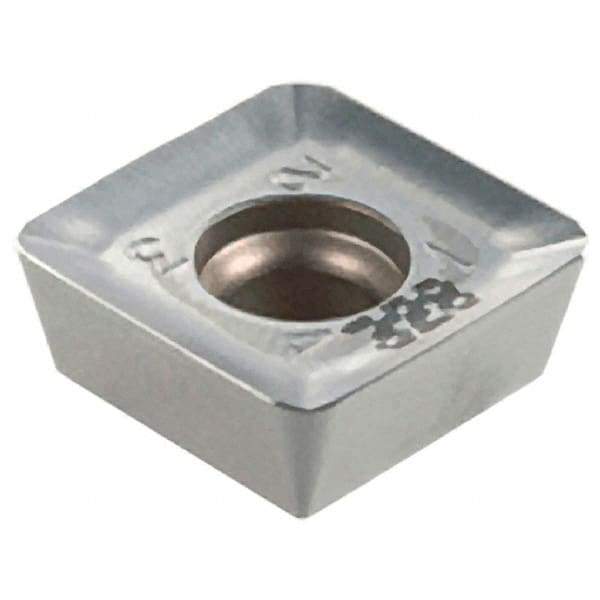

Iscar - QDCT120532 PDN Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1937" Thick, 1/2" Inscribed Circle, 3.2mm Corner Radius
Item #: 07627862
Brand: Iscar
Model #: 5602280
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDCT |
| Insert Size | 120532 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1937 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 3.20 |
| Relief Angle | 15.000 |
| Rake Angle | 24 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | PDN |
| ISO Number | QDCT 120532-PDN |
