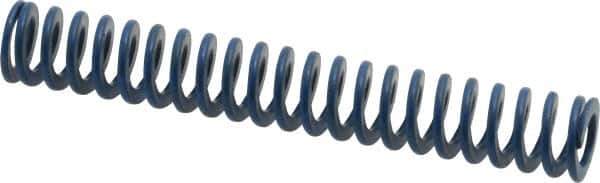

Associated Spring Raymond - 3/8" Hole Diam, 3/16" Rod Diam, 2-1/2" Free Length, Blue Die Spring - 30 Lb Max Deflection, 1.25" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 07660327
Brand: Associated Spring Raymond
Model #: 103-110
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/8 |
| Rod Diameter (Inch) | 3/16 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 30.00 |
| Maximum Deflection (Decimal Inch) | 1.2500 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
