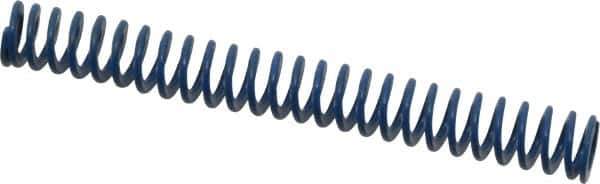

Associated Spring Raymond - 3/8" Hole Diam, 3/16" Rod Diam, 3" Free Length, Blue Die Spring - 31.5 Lb Max Deflection, 1.5" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 07660335
Brand: Associated Spring Raymond
Model #: 103-112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/8 |
| Rod Diameter (Inch) | 3/16 |
| Free Length (Inch) | 3 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 31.50 |
| Maximum Deflection (Decimal Inch) | 1.5000 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
