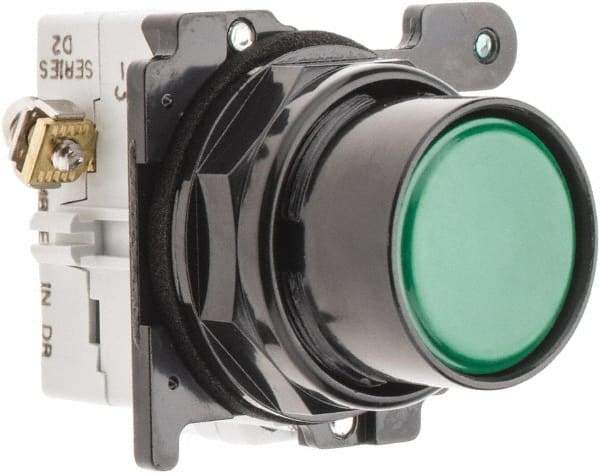

Eaton Cutler-Hammer - 30-1/2mm Mount Hole, Flush, Pushbutton Switch with Contact Block - Round, Green Pushbutton, Nonilluminated, Momentary (MO), Corrosion Resistant, Oiltight and Watertight
Item #: 07827447
Brand: Eaton Cutler-Hammer
Model #: E34PB3-53X
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches with contact blocks are designed to activate machinery by button that is pressed and released. The contact block controls the flow of electricity through the switch.
Nonilluminated pushbuttons do not feature a light within the button.They are commonly used in areas where added light is not needed.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 30-1/2 |
| Switch Type | Pushbutton Switches with Contact Blocks |
| Pushbutton Type | Flush |
| Pushbutton Shape | Round |
| Pushbutton Color | Green |
| Operator Illumination | NonIlluminated |
| Operation Type | Momentary (MO) |
| Pushbutton Material | Metal |
| Amperage | 0.50 |
| Voltage | 120 VAC/VDC |
| Contact Configuration | NO |
| Terminal Type | Screw |
| NEMA Rating | 3; 4; 12; 13; 3R; 4X |
| Resistance Features | Corrosion Resistant; Oiltight; Watertight |
| Standards Met | 60947-5-5; CE EN 60947-5-1; CSA C22.2 No. 14 File LR68551; FDA 3-A; UL 508 File E131568; UL Listed |
