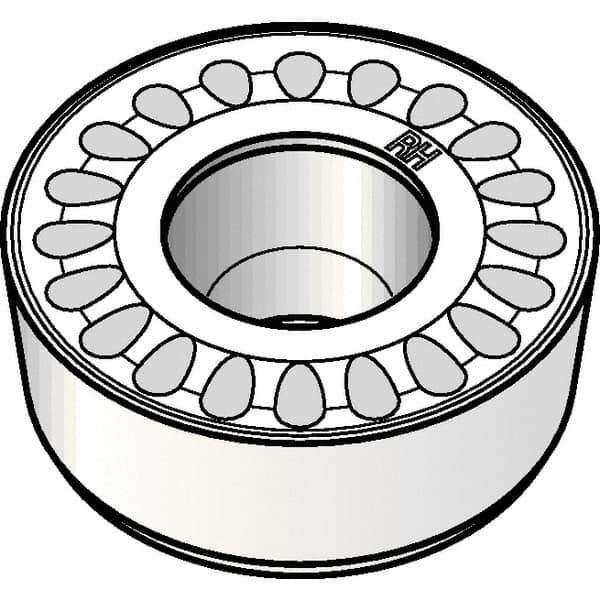

Kennametal - RCMX2507M0 RH Grade KCP10 Carbide Turning Insert - TiCN/Al2O3 Finish, Round, 25mm Inscr Circle, 5/16" Thick
Item #: 08340580
Brand: Kennametal
Model #: 3755367
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 2507M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.00 |
| Inscribed Circle (Decimal Inch) | 0.9843 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Material Grade | C3/C7 |
| Chip Breaker | RH |
| Hole Diameter (mm) | 7.40 |
| Hole Diameter (Decimal Inch) | 0.2913 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Round |
