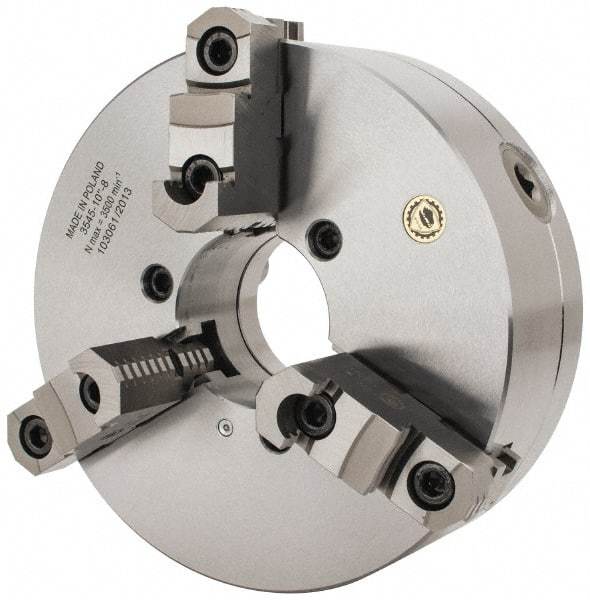

Bison - 3 Jaws, 10" Diam, Self Centering Manual Lathe Chuck - D1-8 Mount Spindle, Reversible, 3,500 Max RPM, 2.9921" Through Hole Diam, 0.001" Axial Runout, 0.0016" Radial Runout, Forged Steel
Item #: 08548588
Brand: Bison
Model #: 7-823-1038
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 10 |
| Number of Jaws | 3 |
| Mount | D1-8 |
| Through-Hole Diameter (Decimal Inch) | 2.9921 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (mm) | 254.00 |
| Chuck Diameter (Inch) | 10 |
| Adjustable | No |
| Axial Runout (Decimal Inch) | 0.0010 |
| Radial Runout (Decimal Inch) | 0.0016 |
| Body Length (Decimal Inch) | 3.5039 |
| Maximum RPM | 3500 |
| Includes | Two-Piece Hard Reversible Jaws |
