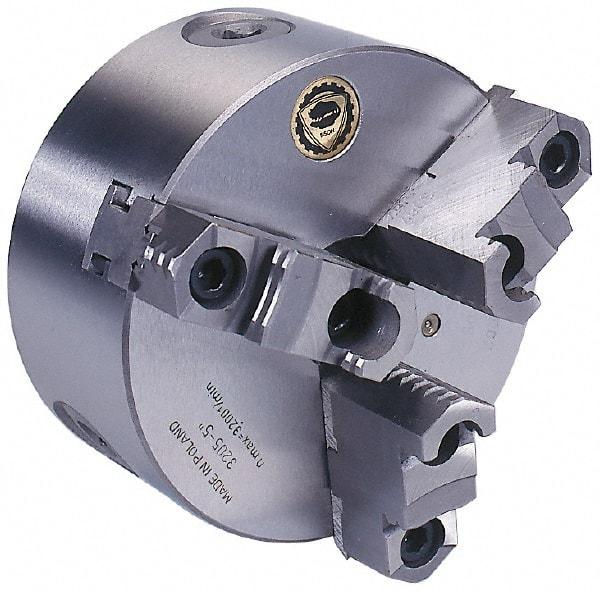

Bison - 3 Jaws, 16" Diam, Self Centering Manual Lathe Chuck - A1-11 Mount Spindle, Reversible, 1,000 Max RPM, 5.1181" Through Hole Diam, 0.0012" Axial Runout, 0.0024" Radial Runout, Cast Iron
Item #: 08598385
Brand: Bison
Model #: 7-801-1619
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 16 |
| Number of Jaws | 3 |
| Mount | A1-11 |
| Through-Hole Diameter (Decimal Inch) | 5.1181 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 15-3/4 |
| Minimum Jaw Capacity (Decimal Inch) | 0.3940 |
| Maximum Jaw Capacity (Decimal Inch) | 12.9500 |
| Adjustable | No |
| Axial Runout (Decimal Inch) | 0.0012 |
| Radial Runout (Decimal Inch) | 0.0024 |
| Body Length (Decimal Inch) | 5.0591 |
| Maximum RPM | 1000 |
| Includes | (2) Hex Keys; Chuck Wrench; Eye Bolts (Chuck Size 15-3/4" & Larger); Set of Hard Master Jaws; Set of Mounting Bolts; Set of Soft Top Reversible Jaws |
