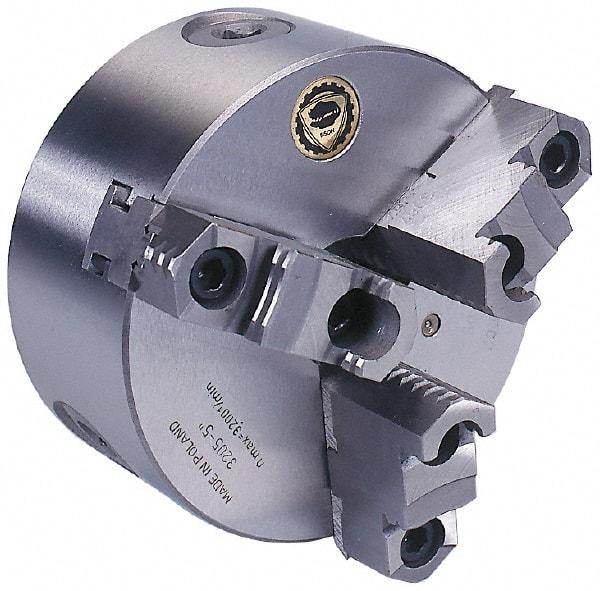

Bison - Manual Lathe Chucks Chuck Type: Self-Centering Nominal Chuck Size: 25
Item #: 08599656
Brand: Bison
Model #: 7-803-2539
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
Product Specifications
Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 25 ; Number of Jaws: 3 ; Mount: D1-11 ; Through-Hole Diameter (Decimal Inch): 7.5984 ; Body Material: Cast Iron (Semi-Steel)
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 25 |
| Number of Jaws | 3 |
| Mount | D1-11 |
| Through-Hole Diameter (Decimal Inch) | 7.5984 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 25 |
| Minimum Jaw Capacity (Decimal Inch) | 1.1800 |
| Maximum Jaw Capacity (Decimal Inch) | 26.1800 |
| Adjustable | No |
| Axial Runout (Decimal Inch) | 0.0020 |
| Radial Runout (Decimal Inch) | 0.0040 |
| Body Length (Decimal Inch) | 6.4960 |
| Maximum RPM | 500 |
| Includes | Two-Piece Jaws |
