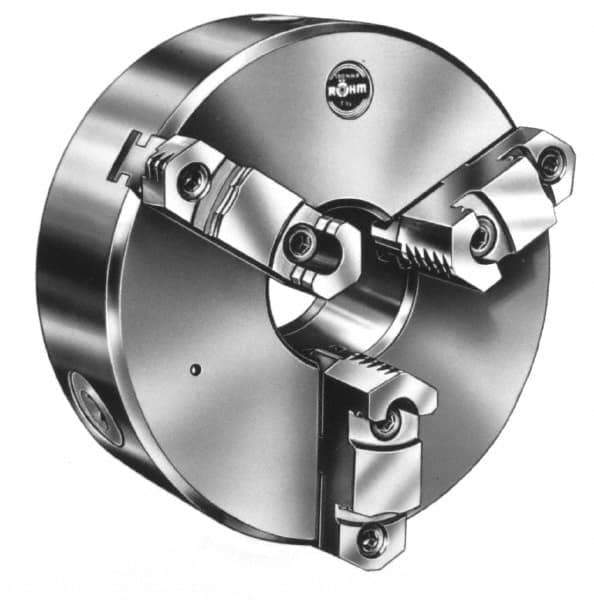

Rohm - 3 Jaws, 12" Diam, Self Centering Manual Lathe Chuck - A1-8 Mount Spindle, Reversible, 103mm Through Hole Diam, Forged Steel
Item #: 08622540
Brand: Rohm
Model #: 101398
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 12 |
| Number of Jaws | 3 |
| Mount | A1-8 |
| Through-Hole Diameter (mm) | 103.00 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 12-1/2 |
| Series | ZGU-ZSU |
| Adjustable | No |
| Includes | Two-Piece Reversible Top Jaws |
