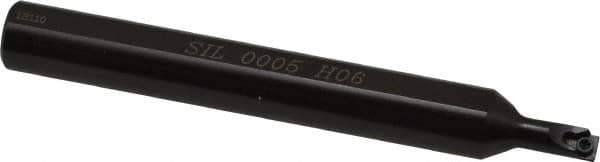

Carmex - Internal Thread, Left Hand Cut, 12mm Shank Width x 12mm Shank Height Indexable Threading Toolholder - 100mm OAL, 06IL Insert Compatibility, SI Toolholder
Item #: 08716151
Brand: Carmex
Model #: SIL0005H06
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Insert Compatibility | 06IL |
| Toolholder Style | SI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2400 |
| Center to Cutting Edge (mm) | 4.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 12.0000 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Toolholder Material | Steel |
