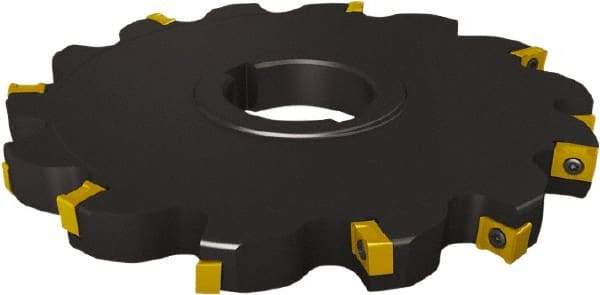

Seco - Arbor Hole Connection, 1/2" Cutting Width, 1.811" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 7 Tooth Indexable Slotting Cutter - 335.18 Toolholder, LNK.. 08.. Insert
Item #: 08867889
Brand: Seco
Model #: 21512
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.8110 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 7 |
| Toolholder Style | 335.18 |
| Series | 335.18 |
| Insert Style | LNK.. 08.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Maximum RPM | 7500 |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.6250 |
| Complete Insert Compatibility1 | LNKT 080504PPN-E05; LNKT 080504PPTN-M06; LNKT 080508PPN-E05; LNKT 080508PPTN-M06; LNKT 080516PPN-E05; LNKT 080516PPTN-M06; LNKT 080520PPN-E05; LNKT 080520PPTN-M06; LNKT 080524PPN-E05; LNKT 080524PPTN-M06; LNKT 080531PPN-E05; LNKT 080531PPTN-M06; LNKT 0805 |
