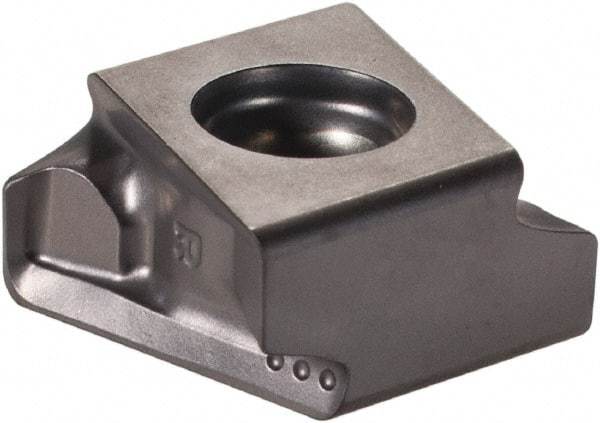

Iscar - LNHT1106 PNRHT Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.433" Thick, 0.79mm Corner Radius
Item #: 09064213
Brand: Iscar
Model #: 5603954
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNHT |
| Insert Size | 1106 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2350 |
| Length (Decimal Inch) | 0.4390 |
| Thickness (Decimal Inch) | 0.4330 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | PNRHT |
| Maximum Depth of Cut (mm) | 10.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Manufacturers Catalog Number | LNHT 1106PN-R HT |
