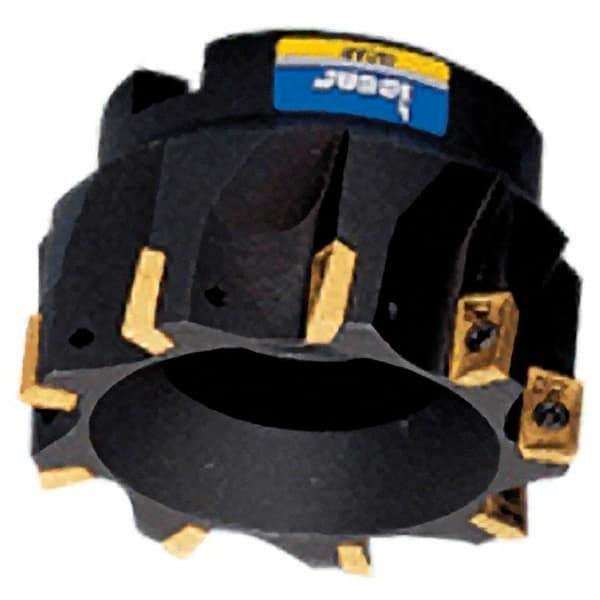

Iscar - 7 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 0.39" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, AP.. 1003 Insert Compatibility, Series Heli2000
Item #: 09209529
Brand: Iscar
Model #: 3102079
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | AP.. 1003 |
| Series | Heli2000 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90AP-10 |
| Number of Flutes | 7 |
| Complete Insert Compatibility | APCT 100302R-HM; APCT 100304R-HM; APCT 1003PDR-HM; APKR 1003PDR-HM; APKT 100308PDTR-RM; APKT 100310PDR-RM; APKT 100312TR-RM; APKT 100316PDTR-RM; APKT 100320PDTR-RM; APKT 100325R; APKT 100330R; APKT 100340R; APKT 1003PDR-HM |
