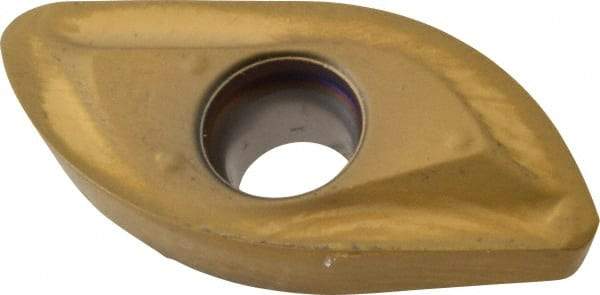

Seco - 218.20080 M04 Grade F25M Carbide Milling Insert - TiAlN/TiN Finish, 0.126" Thick, 0.315" Corner Radius
Item #: 09293564
Brand: Seco
Model #: 07253
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 218.20 |
| Insert Size | 080 |
| Material | Carbide |
| Material Grade | C2/C5 |
| Manufacturer's Grade | F25M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.2710 |
| Length (Decimal Inch) | 0.6150 |
| Thickness (Decimal Inch) | 0.1260 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Rake Angle | 0 |
| Coating Process | PVD |
| Shape | Irregular |
| Insert Hand | Right Hand |
| Chipbreaker | M04 |
| Cutting Edge Style | T-Land |
| ISO Number | 218.20-080ER-M04 |
