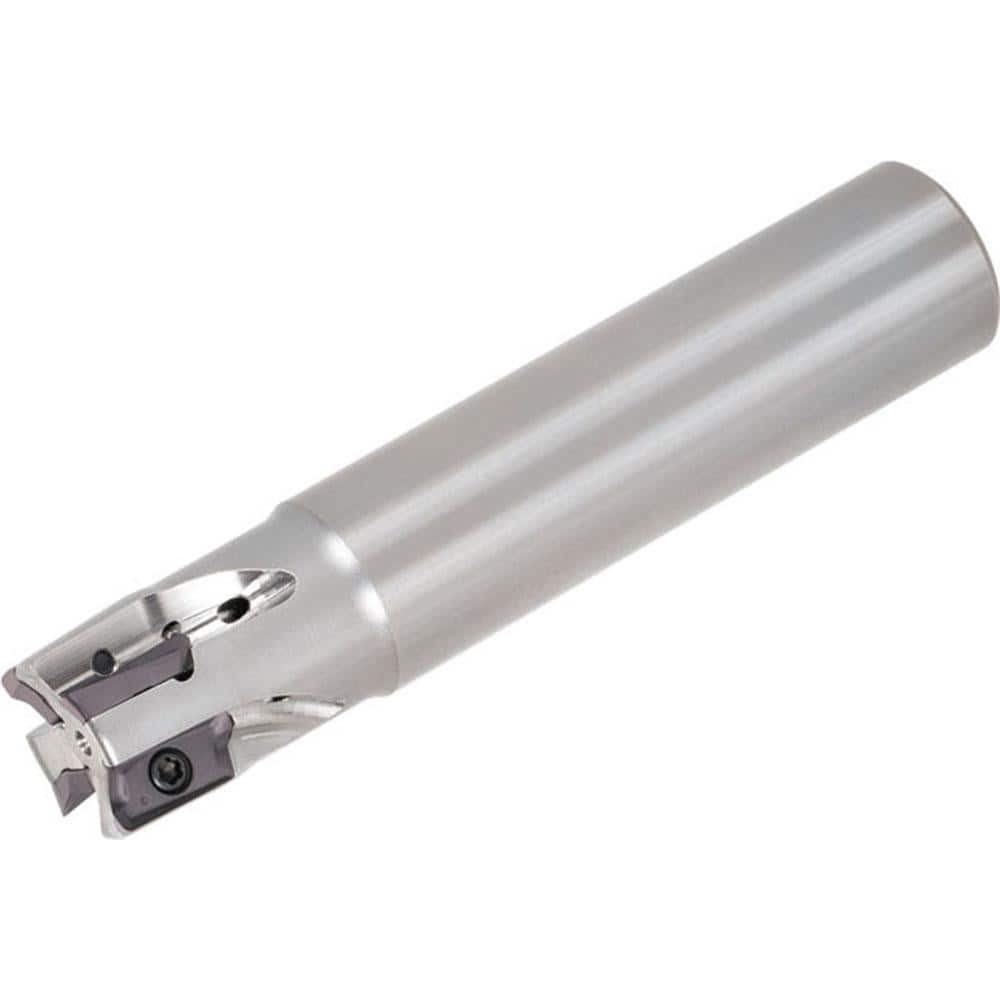

Indexable Square-Shoulder End Mill: EPAV12U1.25W1.25R08, 1.2500'' Cut Dia, 0.4530'' Max Depth of Cut, 1.2500'' Shank Dia, Weldon Flat Shank Uses 8, Normal Pressure,
Item #: 09942673
Brand: Tungaloy
Model #: 6841753
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.4530 |
| Cutter Style | EPAV |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 2 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.7800 |
| Tool Material | Steel |
| Series | EPAV |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.7810 |
| Head Length (Inch) | 1-1/2 |
| Head Length (Decimal Inch) | 1.5000 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 8 |
| Usable Length (Decimal Inch) | 3.7810 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Normal Pressure |
