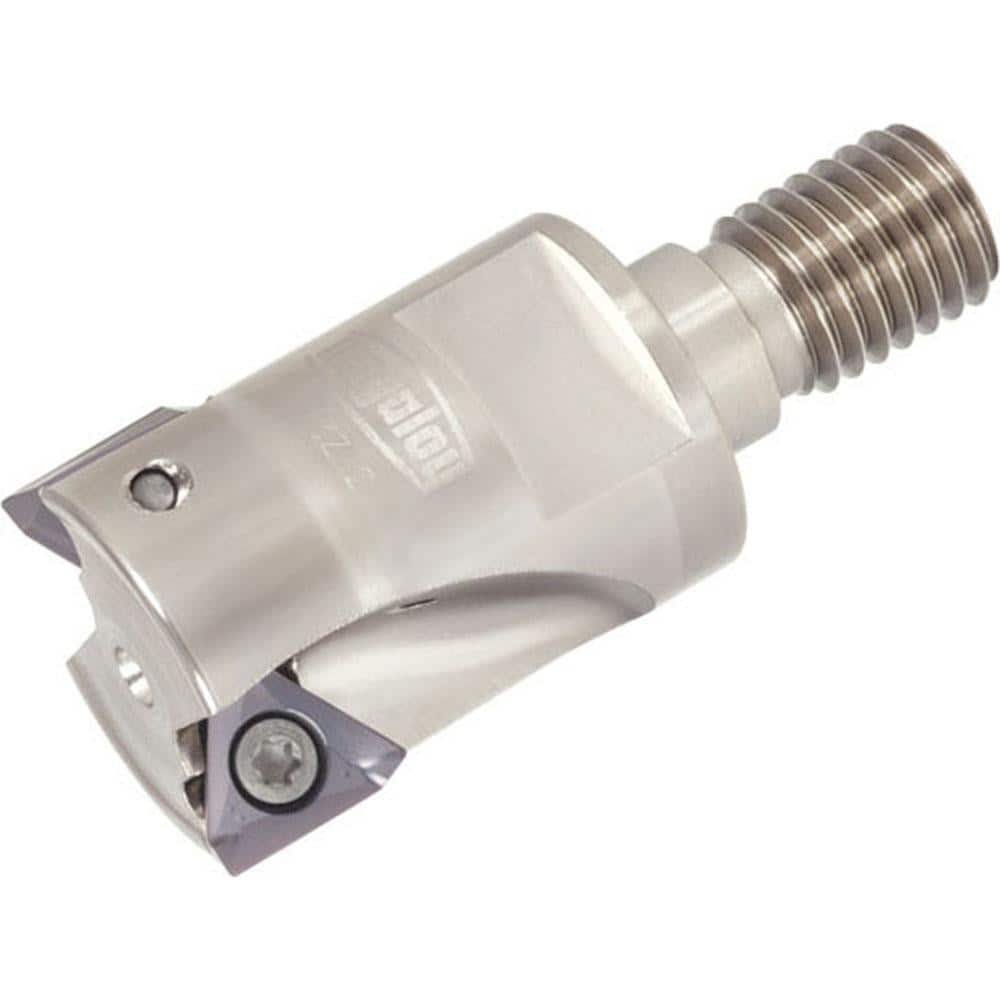

Indexable Square-Shoulder End Mill: HPA06R016MM08-02, 13.0000'' Shank Dia, M8 Modular Connection, Modular Shank Uses 2, Normal Pressure, 42.00 mm OAL
Item #: 09994013
Brand: Tungaloy
Model #: 6999378
Product Specifications
| Minimum Cutting Diameter (mm) | 16.00 |
| Maximum Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Cutter Style | HPA |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 13.0000 |
| Shank Diameter (Inch) | 13 |
| Maximum Ramping Angle | 4.3 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 42.00 |
| Tool Material | Steel |
| Series | HPA |
| Lead Angle | 90 |
| Shank Length (mm) | 25.00 |
| Head Length (mm) | 25.00 |
| Modular Connection Size | M8 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 25.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Normal Pressure |
