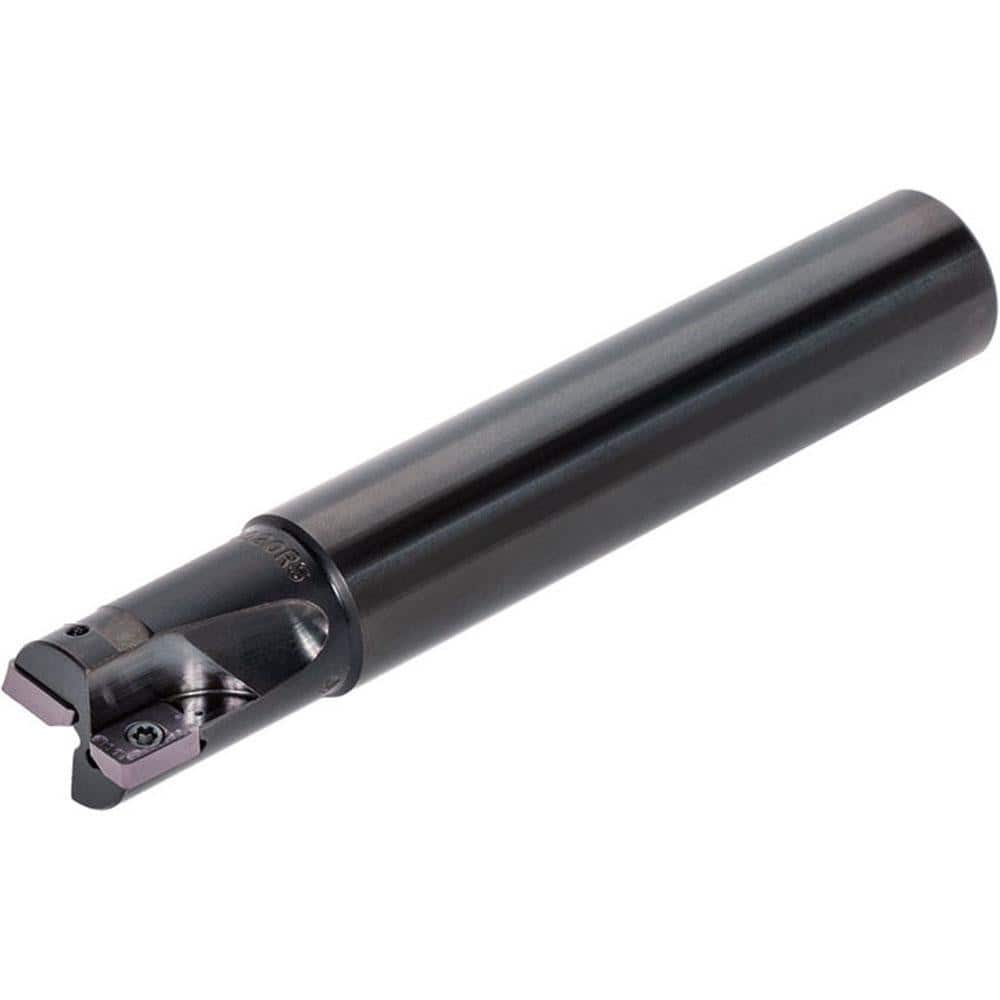

Indexable Square-Shoulder End Mill: EVX16063RLA, 42.0000'' Shank Dia, Straight Shank Uses 3, Normal Pressure, 360.00 mm OAL
Item #: 09997073
Brand: Tungaloy
Model #: 6821314
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutter Style | EVX |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 42.0000 |
| Shank Diameter (Inch) | 42 |
| Maximum Ramping Angle | 3 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 360.00 |
| Tool Material | Steel |
| Series | EVX |
| Lead Angle | 90 |
| Shank Length (mm) | 310.00 |
| Head Length (mm) | 50.00 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 360.000 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Normal Pressure |
