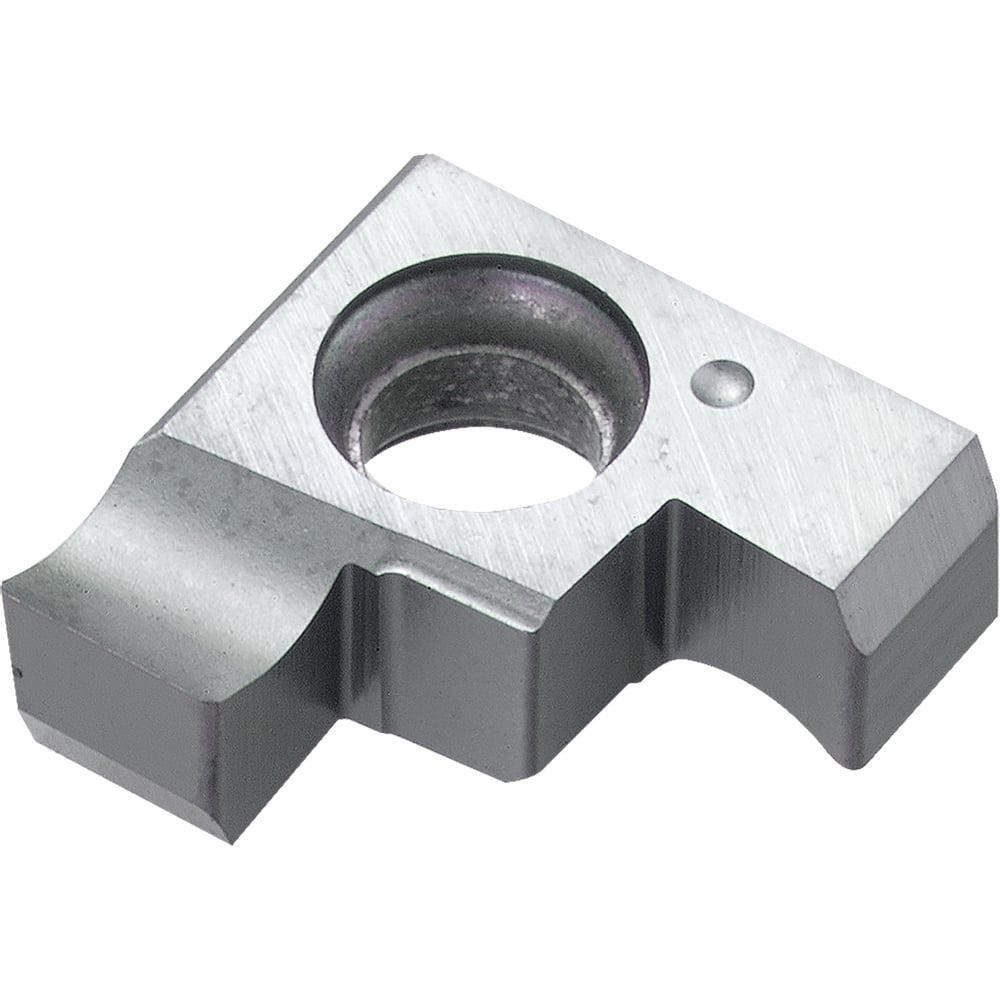

Grooving Insert: GE150010A TN6020, Cermet TiCN Finish, Right Hand, 1.5 mm Cutting Width, 1.5 mm Max Depth, Series SIGE
Item #: 10162261
Brand: Kyocera
Model #: TSQ16735
Product Specifications
| Insert Style | GE |
| Insert Size | 150010 |
| Insert Material | Cermet |
| Manufacturer Grade | TN6020 |
| Cutting Width (mm) | 1.50 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 2.58 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.10 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Rake | Positive |
| Multi-use Tool | No |
| Series | Sige |
| Rake Angle | 5.00 |
| Overall Length (Decimal Inch) | 0.2559 |
| Manufacturers Catalog Number | GER150010ATN6020 |
| Minimum Insert Width (mm) | 6.69 |
| Chip Breaker | A |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Coating/Finish | TiCN |
| Number Of Cutting Edges | 2 |
| For Use With | SigeR...EH; SigeR...A-EH; SigeR...A-WH |
| Insert Thickness | 2.58 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.50 |
