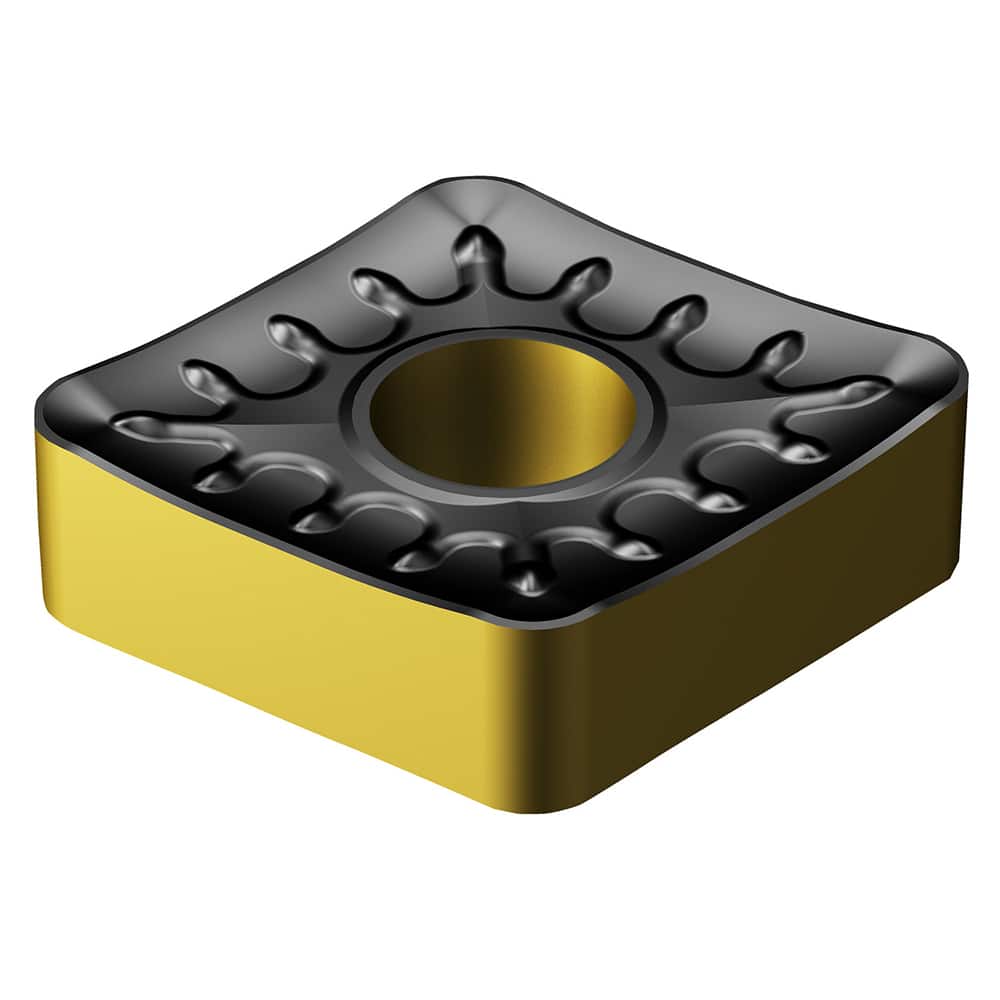

CNMM 642-QR 4425 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 3/4″ Inscribed Circle, 0.0313″ Corner Radius, 1/4″ Thick, 80° Trigon
Item #: 10206910
Brand: Sandvik Coromant
Model #: 7861244
Product Specifications
| Insert Style | CNMM |
| Insert Shape Code | C |
| Insert Size Code | 190608 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Inch) | 3/4 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P; K |
| Iso Code | CNMM 19 06 08-QR 4425 |
| Manufacturers Catalog Number | CNMM 642-QR |
| Cutting Direction | Neutral |
| Chip Breaker | M |
| Industry Standard Number | CNMM 19 06 08-QR 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
