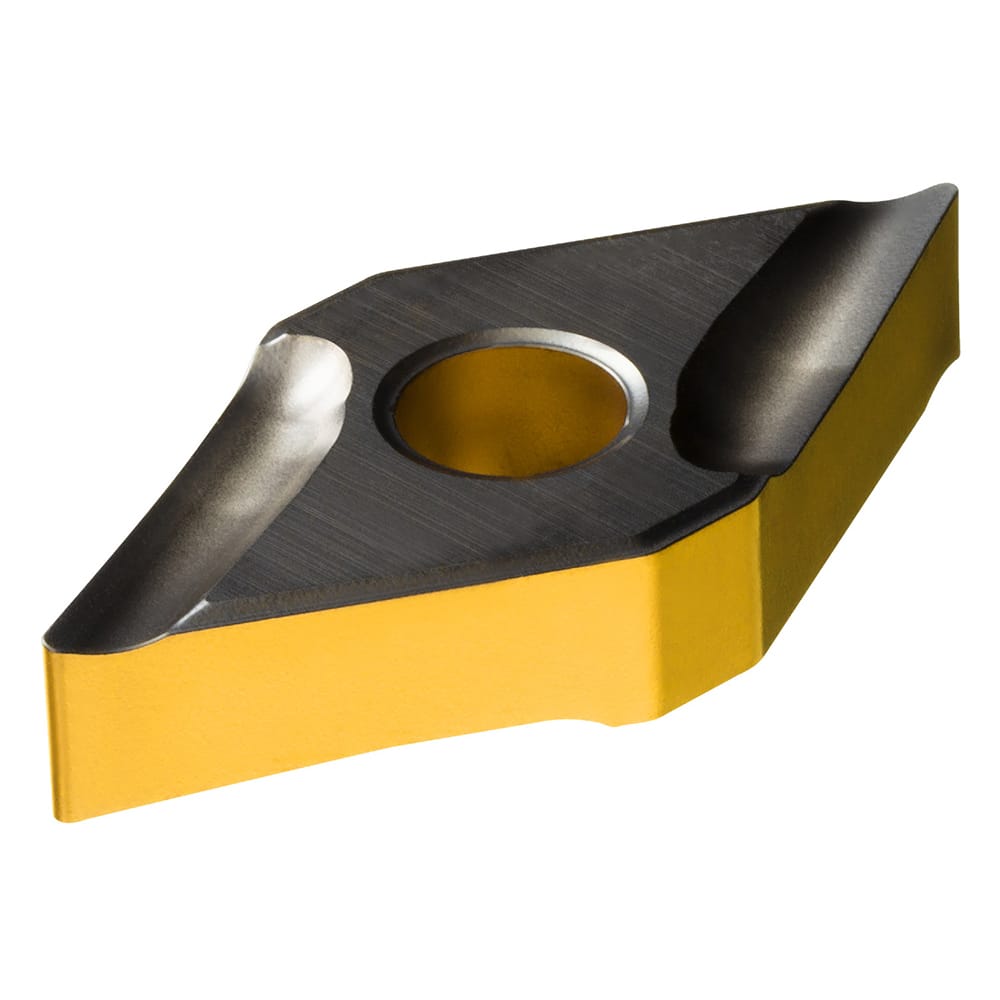

DNMG431L-K 4425 Carbide Turning Insert Al2O3/TiN/TiCN Finish, LH, 1/2″ Inscribed Circle, 0.0156″ Corner Radius, 3/16″ Thick, 55° Triangle
Item #: 10207181
Brand: Sandvik Coromant
Model #: 7861213
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 1504 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Left Hand |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | DNMG431LK4425 |
| Iso Code | DNMG 15 04 04L-K 4425 |
| Manufacturers Catalog Number | DNMG 431L-K |
| Cutting Direction | Left Hand |
| Chip Breaker | K |
| Industry Standard Number | DNMG 15 04 04L-K 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 10207181 |
| Mfr Part # | 7861213 |
| Country of OriginCountry of Origin is subject to change | Sweden |
