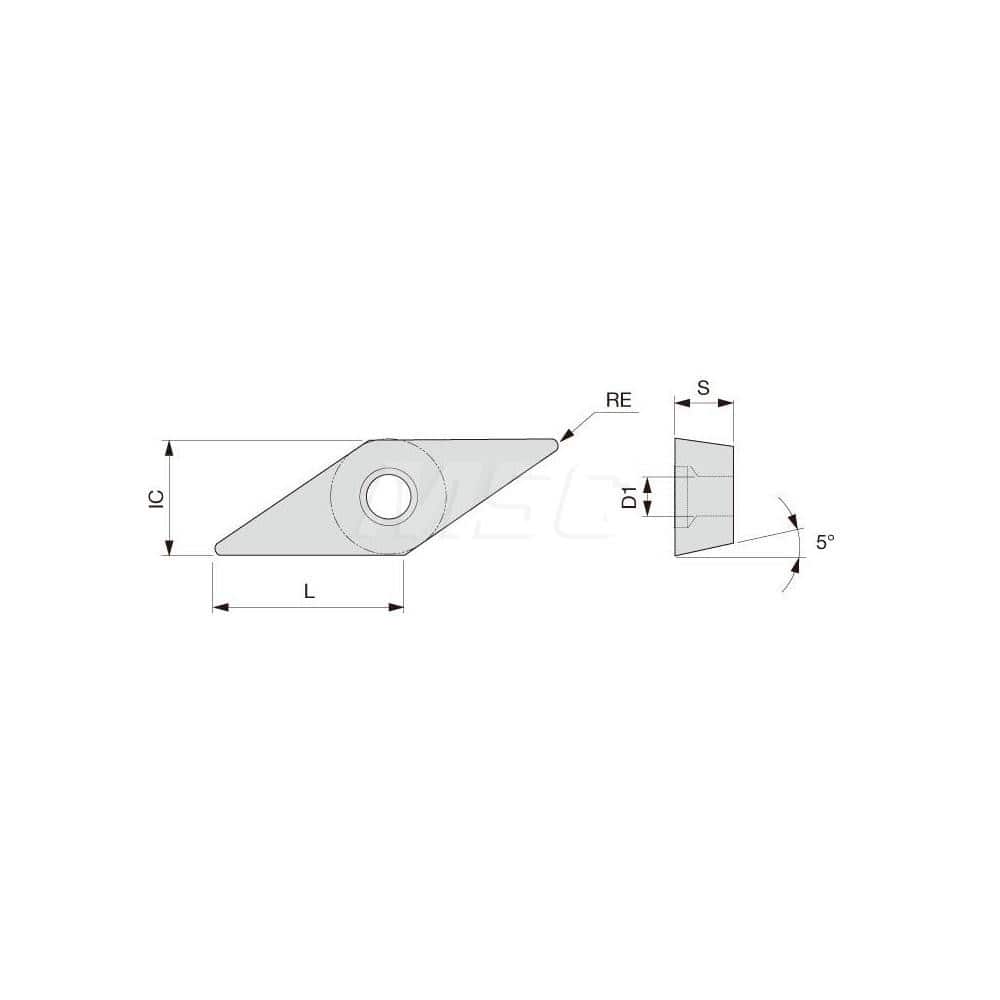

Turning Insert: VBMT220.5PS T6130, Solid Carbide TiCN & TiN Finish, Neutral, 1/4″ Inscribed Circle, 0.0080″ Corner Radius, 35.0 ° N/A Diamond, Series VBMT
Item #: 10665297
Brand: Tungaloy
Model #: 6994740
Product Specifications
| Insert Style | VBMT |
| Insert Size Code | 220.5 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T6130 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | VBMT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | VBMT220.5PST6130 |
| Iso Code | VBMT110302-PS T6130 |
| Chip Breaker | PS |
| Coating/Finish | TiCN; TiN |
