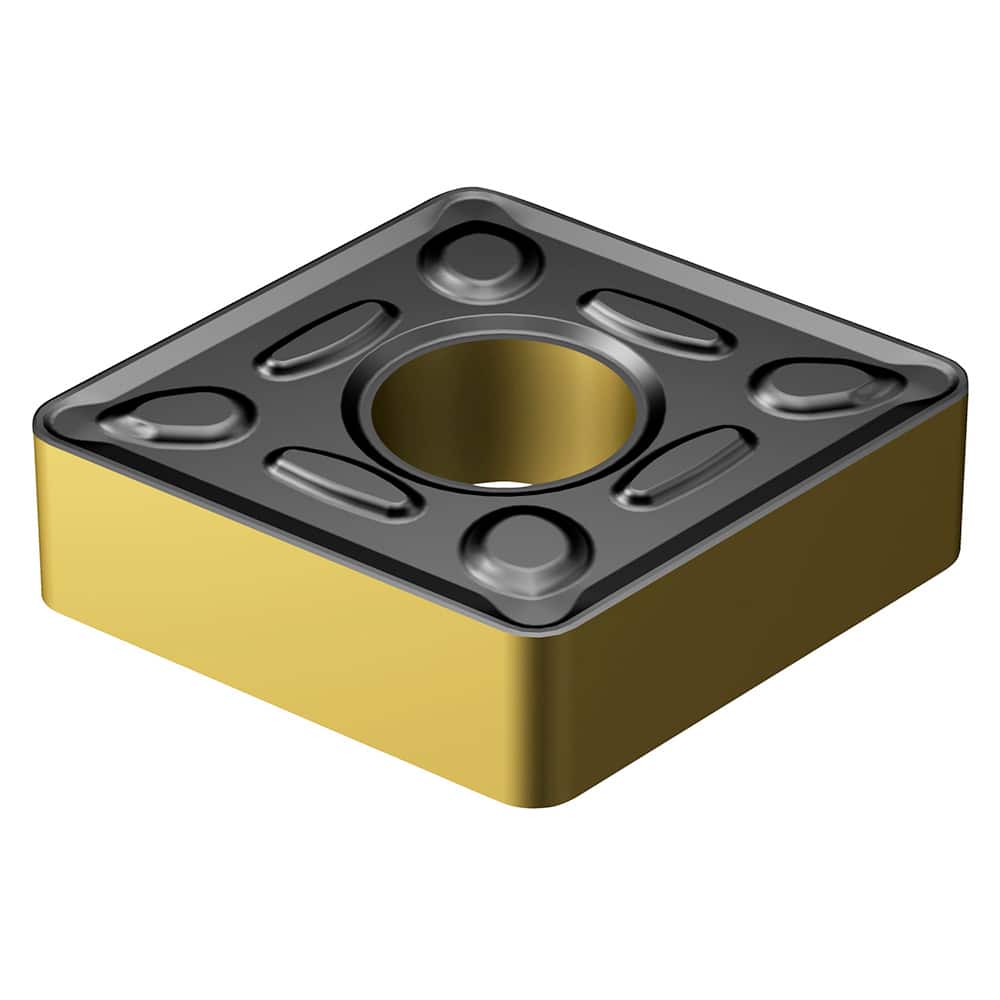

Turning Insert: CNMG 19 06 24-HM 4415, TiCN, Al2O3 & TiN Finish, Neutral, 0.0938″ Corner Radius, N/A Series CNMG-HM
Item #: 10794832
Brand: Sandvik Coromant
Model #: 8021220
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 1906 |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Relief Angle | 0 |
| Series | CNMG-HM |
| Coating Process | CVD |
| Secondary Workpiece Material | K |
| Iso Code | CNMG 19 06 24-HM 4415 |
| Manufacturers Catalog Number | CNMG 19 06 24-HM 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
