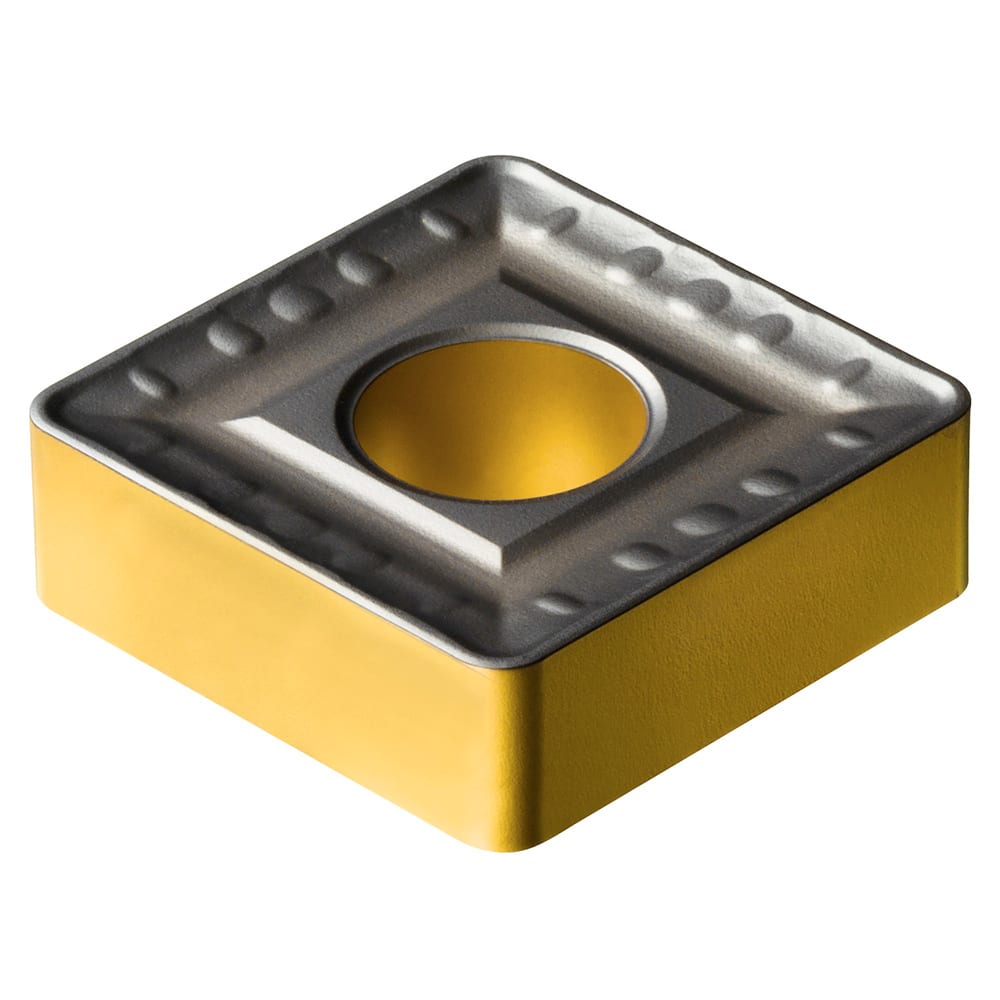

Turning Insert: SNMM 19 06 16-HR 4415, TiCN, Al2O3 & TiN Finish, Neutral, 0.0625″ Corner Radius, N/A Series SNMM-HR
Item #: 10797066
Brand: Sandvik Coromant
Model #: 8021233
Product Specifications
| Insert Style | SNMM |
| Insert Shape Code | S |
| Insert Size Code | 1906 |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Relief Angle | 0 |
| Series | SNMM-HR |
| Coating Process | CVD |
| Secondary Workpiece Material | K |
| Iso Code | SNMM 19 06 16-HR 4415 |
| Manufacturers Catalog Number | SNMM 19 06 16-HR 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
