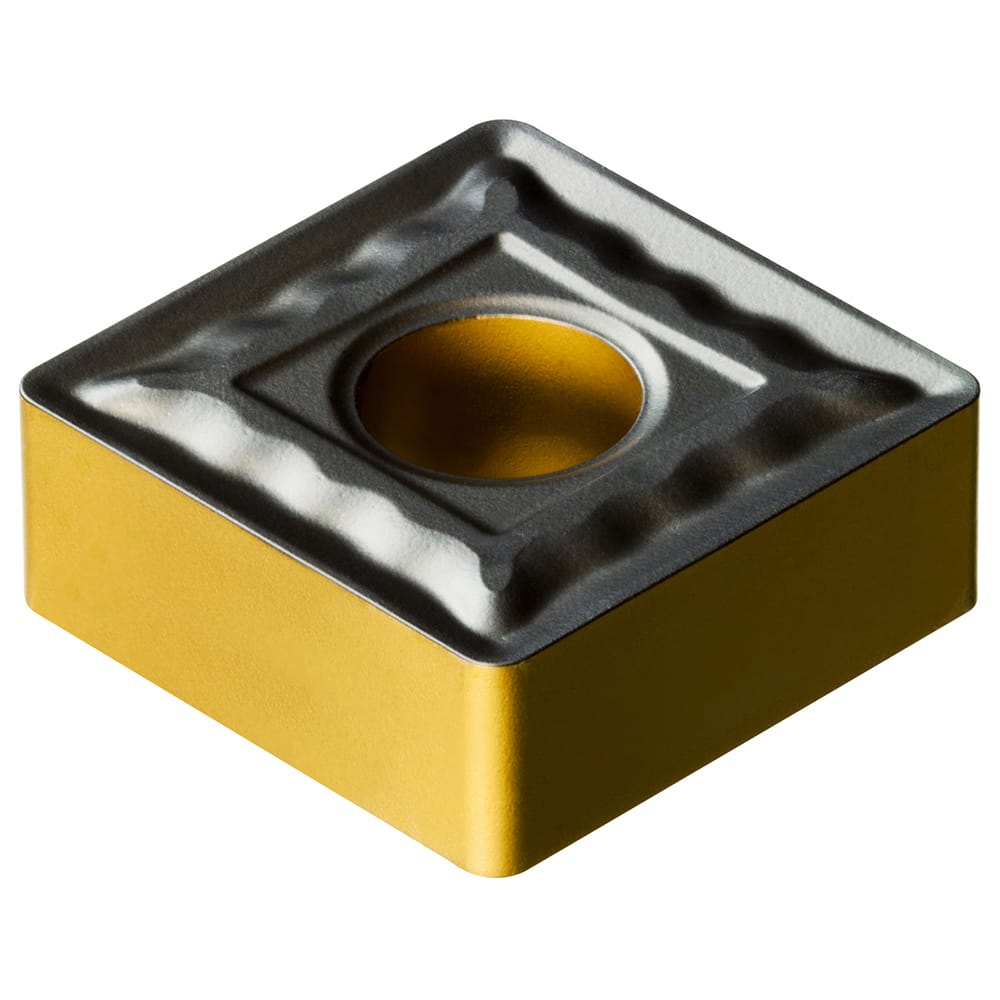

Turning Insert: SNMG 12 04 16-QM 4415, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0625″ Corner Radius, N/A Square, Series SNMG-QM
Item #: 10797777
Brand: Sandvik Coromant
Model #: 8021230
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 434 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0625 |
| Series | SNMG-QM |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | SNMG 12 04 16-QM 4415 |
| Manufacturers Catalog Number | SNMG 12 04 16-QM 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Style | SNMG |
| Coating/Finish | TiCN; TiN; Al2O3 |
