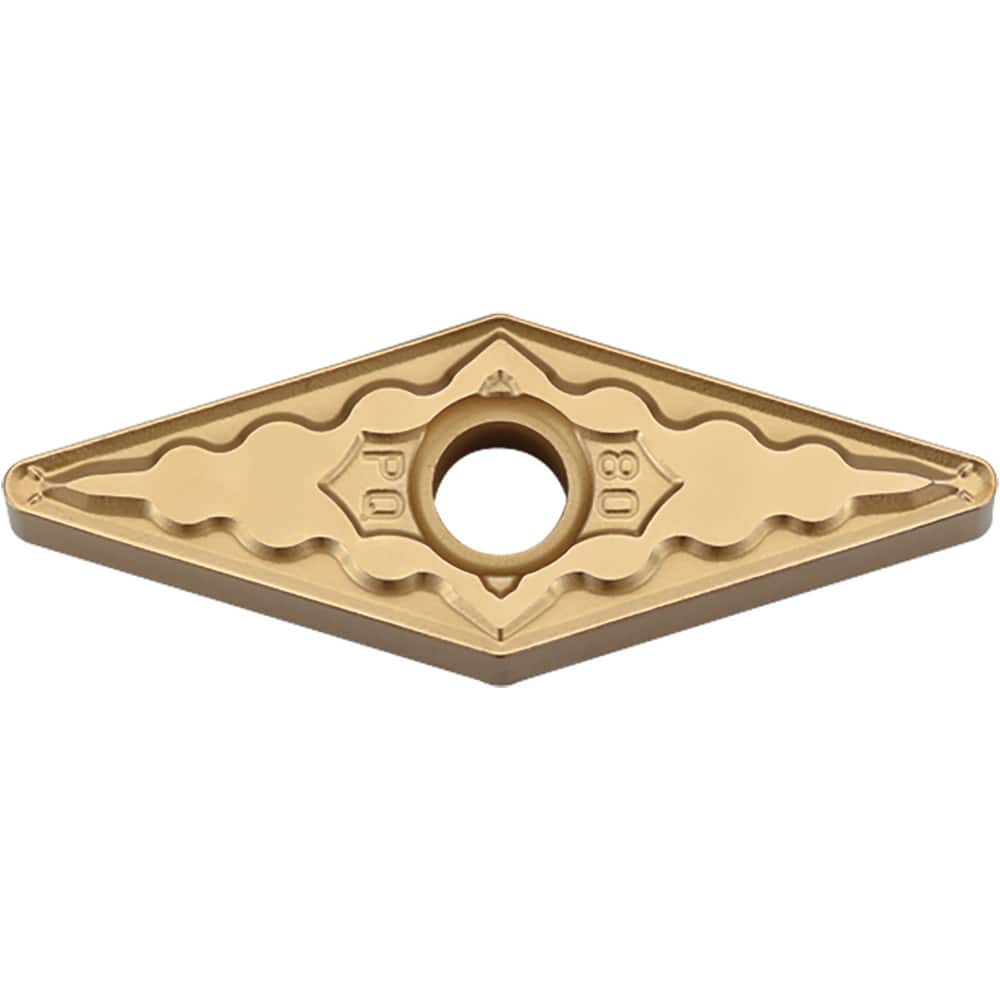

VNMG160408PQ CA025P Carbide Turning Insert TiCl2O3/TiN Finish, Neutral, 3/8″ Inscribed Circle, 0.0315″ Corner Radius, 0.1874″ Thick, 35° Diamond, Series CA0P
Item #: 10926277
Brand: Kyocera
Model #: TMH00059
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 332 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | CA025P |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | CA0P |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | VNMG332PQCA025P |
| Chip Breaker | G |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCl2O3; TiN |
| Multi-Use Application | External Turning; Facing; Copying; Undercutting |
