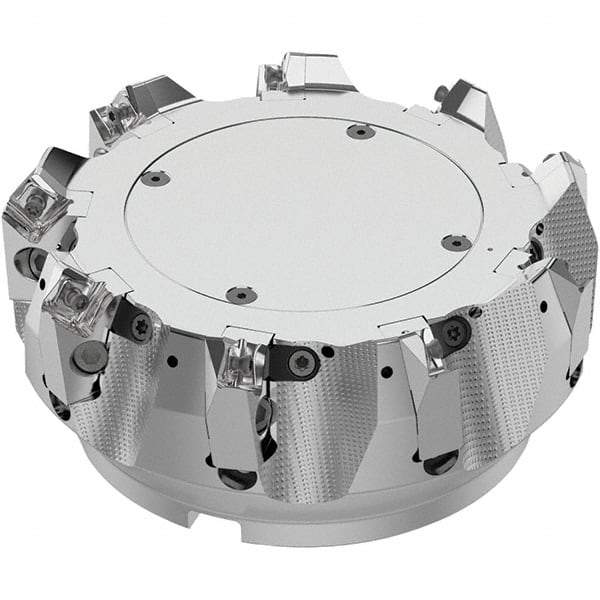

Seco - 6" Cut Diam, 2" Arbor Hole, 0.236" Max Depth of Cut, 48° Indexable Chamfer & Angle Face Mill - 9 Inserts, SN.. Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series R220.54
Item #: 11174414
Brand: Seco
Model #: 03213791
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 2 |
| Lead Angle | 48 |
| Overall Height (mm) | 80.00 |
| Insert Compatibility | SN.. |
| Series | R220.54 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | R220.54 |
| Number of Flutes | 9 |
| Cutting Rake Angle | -6 |
| Hub Diameter (Decimal Inch) | 4.3310 |
| Keyway Width (Decimal Inch) | 0.7560 |
| Maximum Body Diameter (Decimal Inch) | 6.4960 |
| Maximum RPM | 4700 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Overall Diameter (Decimal Inch) | 6.4960 |
| Complete Insert Compatibility | SN..14..ANTR |
| Toolholder Material | Steel |
