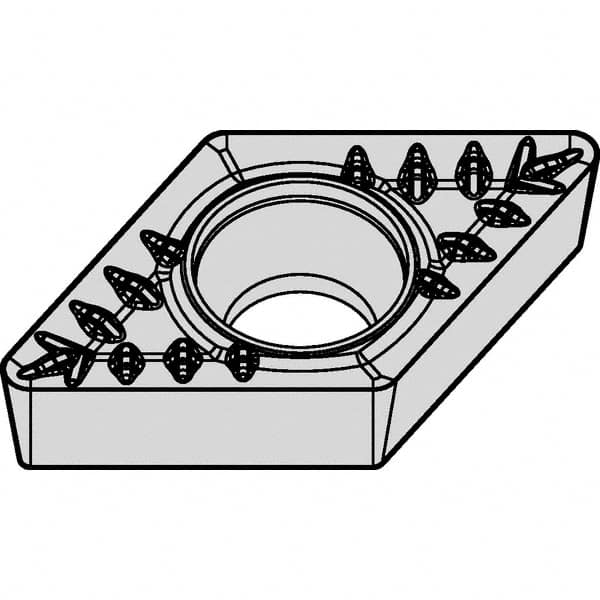

DPMT3253MP KCS10B Carbide Turning Insert AlTiN Finish, 3/8″ Inscribed Circle, 0.047″ Corner Radius, 0.1563″ Thick, 55° Diamond
Item #: 11330610
Brand: Kennametal
Model #: 6686952
Product Specifications
| Insert Style | DPMT |
| Insert Shape Code | D |
| Insert Size Code | 3253 |
| Insert Shape | Diamond 55? |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCS10B |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Iso Code | DPMT11T312MP |
| Manufacturers Catalog Number | DPMT3253MP |
| Cutting Direction | Neutral |
| Chip Breaker | MP |
| Coating/Finish | AlTiN |
