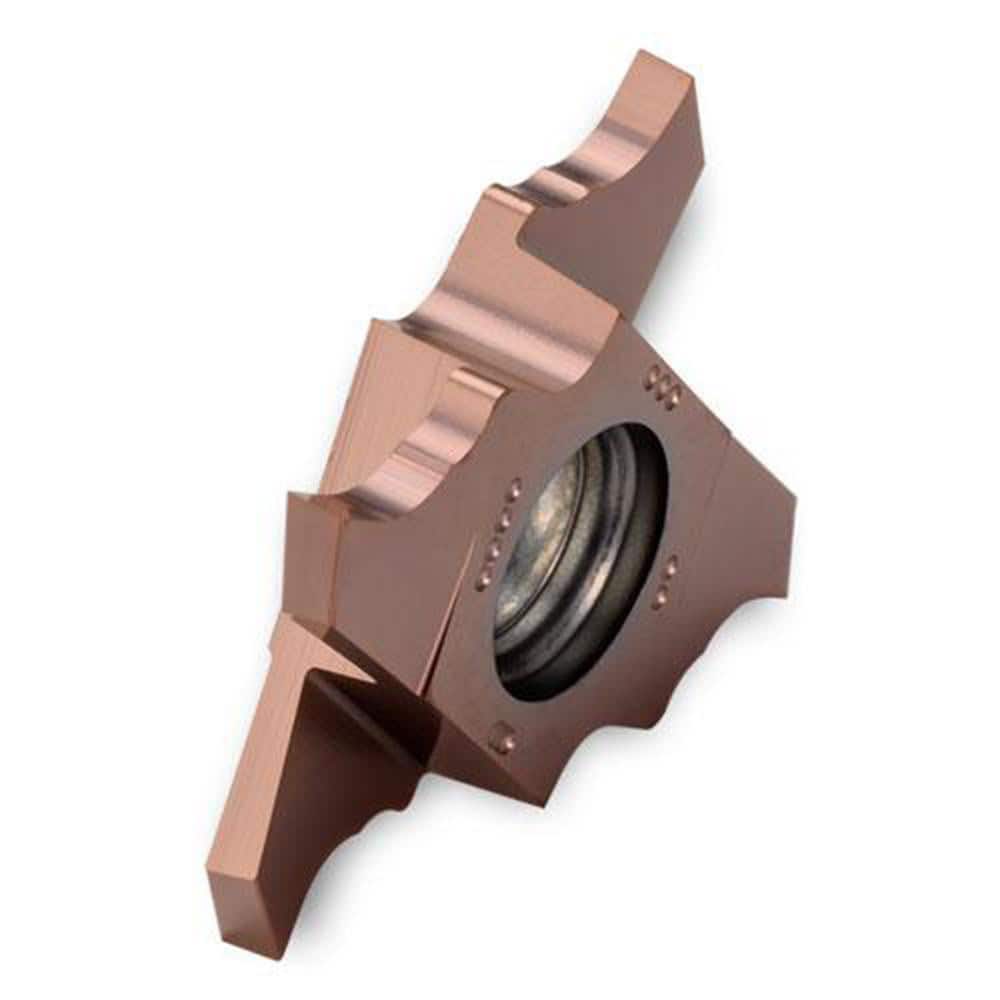

Grooving Insert: TQSS TT4430, Solid Carbide AlTiCrN Finish, Right Hand, 0.02″ Cutting Width, Series TQS20
Item #: 11642915
Brand: Ingersoll Cutting Tools
Model #: 6323465
Product Specifications
| Insert Style | TQS |
| Insert Size Code | 20 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT4430 |
| Cutting Width (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | TQS20 |
| Coating Process | PVD |
| Primary Workpiece Material | Hard Material; Steel |
| Chip Breaker | S |
| Coating/Finish | AlTiCrN |
