Turning Insert: CPMT432CM T5115, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Diamond, Series CPMT
Item #: 11917473
Brand: Tungaloy
Model #: 6864548

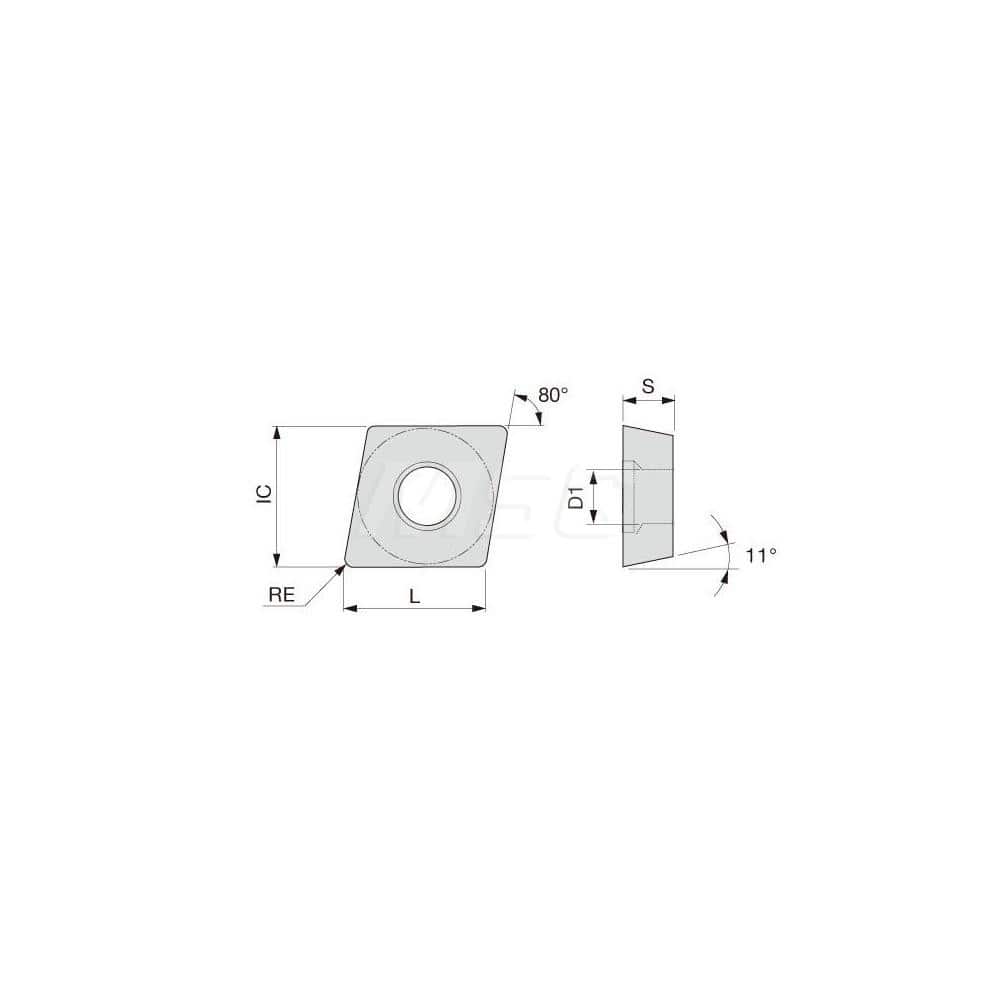

Product Specifications
| Insert Style | CPMT |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T5115 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Series | CPMT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | CPMT432CMT5115 |
| Iso Code | CPMT432-CM T5115 |
| Chip Breaker | CM |
| Coating/Finish | TiCN; TiN; Al2O3 |
