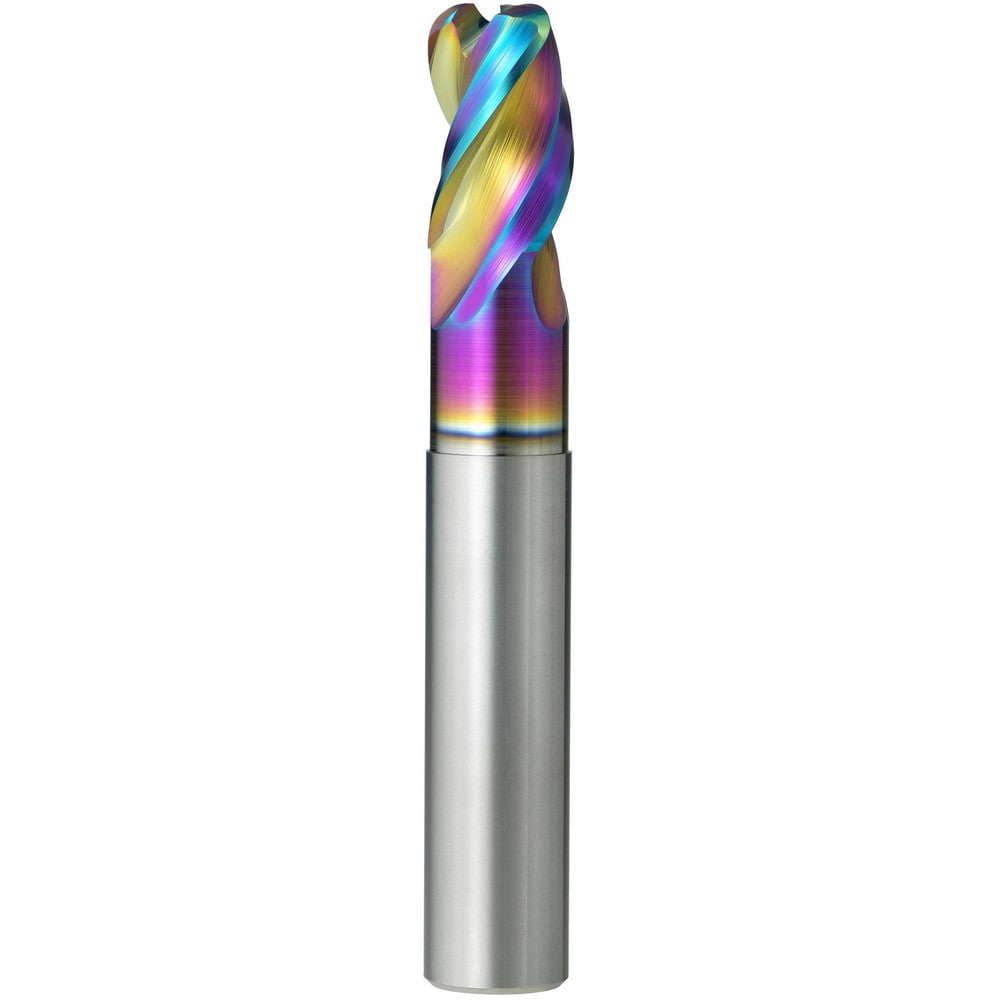

Corner Radius End Mill: 25 mm Dia, 37.50 mm LOC, 2.00 mm Radius, 3 Flute, Solid Carbide
Item #: 85658383
Brand: Mitsubishi
Model #: 10647271
Product Specifications
| Mill Diameter (Decimal Inch) | 0.9843 |
| Mill Diameter (mm) | 25.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 37.50 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | DLC |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0787 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2.00 |
| Overall Length (mm) | 100.00 |
| Coolant Through | Yes |
| End Type | Corner Radius |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 25.00 |
| Neck Diameter (mm) | 23.00 |
| Neck Diameter (Decimal Inch) | 0.9055 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Aluminum |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | N |
| Material Application | Aluminum Alloy |
| Coating Classification | PVD |
| Country of Origin | Japan |
