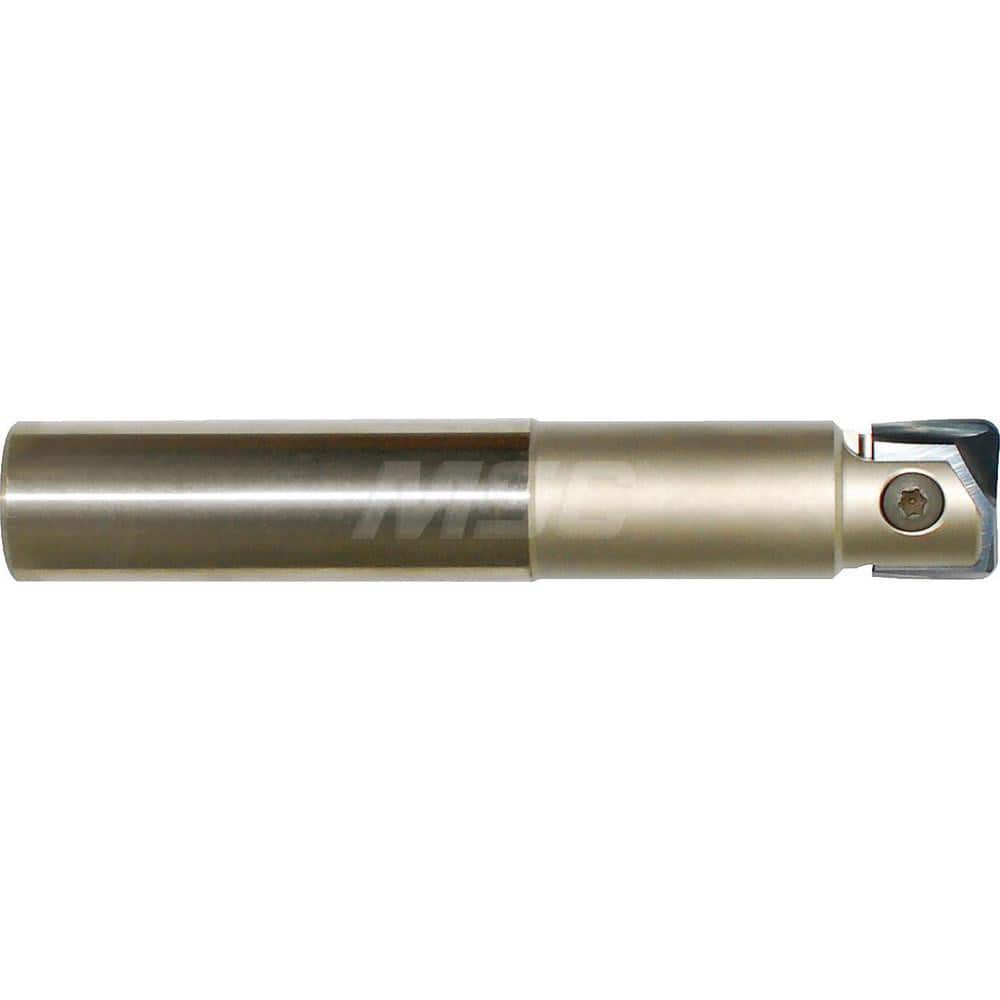

Indexable Ball Nose End Mills; Cutting Diameter (mm): 20; Maximum Depth of Cut (Decimal Inch): 0.7087; Maximum Depth of Cut (mm): 18.00; Shank Type: Straight Shank; Shank Diameter (mm): 20.0000; Toolholder Style: i-Xmill; Number of Ball Nose Inserts Used
Item #: 12495818
Brand: YG-1
Model #: ZRS1200
Product Specifications
| Cutting Diameter (mm) | 20 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 18.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.0000 |
| Toolholder Style | i-Xmill |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | ZRS |
| Series | ZRS |
| Overall Length (mm) | 140.0000 |
