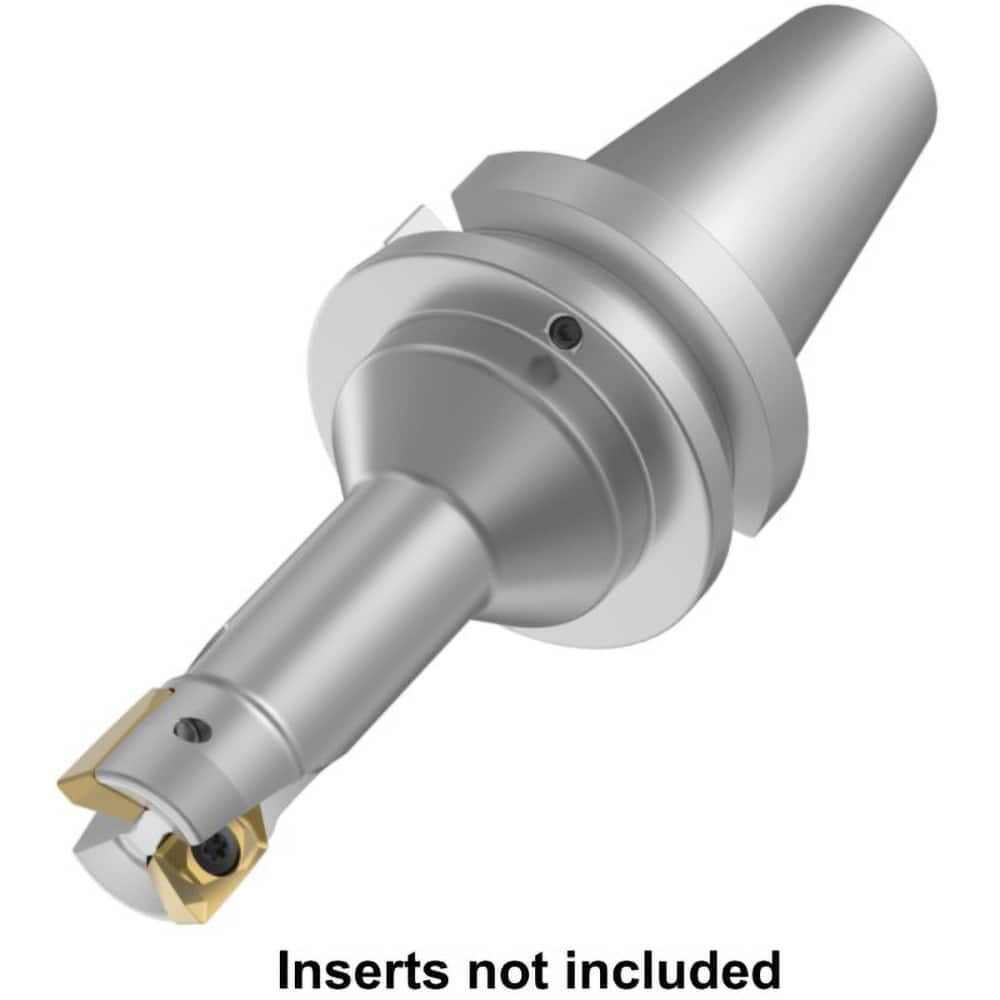

Indexable Square-Shoulder End Mill: M1D300E1807S100L175R, 3.0000'' Cut Dia, 0.6300'' Max Depth of Cut, Taper Shank Uses 7, ED.T180564PD.R.. Inserts, Through Coolant, 44.50 mm OAL
Item #: 13201827
Brand: Kennametal
Model #: 6117618
Product Specifications
| Minimum Cutting Diameter (mm) | 76.20 |
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (mm) | 76.20 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Depth of Cut (mm) | 15.97 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Cutter Style | Face Mill (Shell Mill) |
| Shank Type | Taper |
| Shank Taper Size | BT40 |
| Overall Length (mm) | 44.50 |
| Overall Length (Decimal Inch) | 1.7500 |
| Series | Mill 1-18 |
| Maximum RPM | 19780 |
| MSC/Manufacturer Number | M1D300E1807S100L175R |
| Insert Compatibility | ED.T180564PD.R.. |
| ISO Number | M1D300E1807S100L175R |
| Number Of Flutes | 7 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
