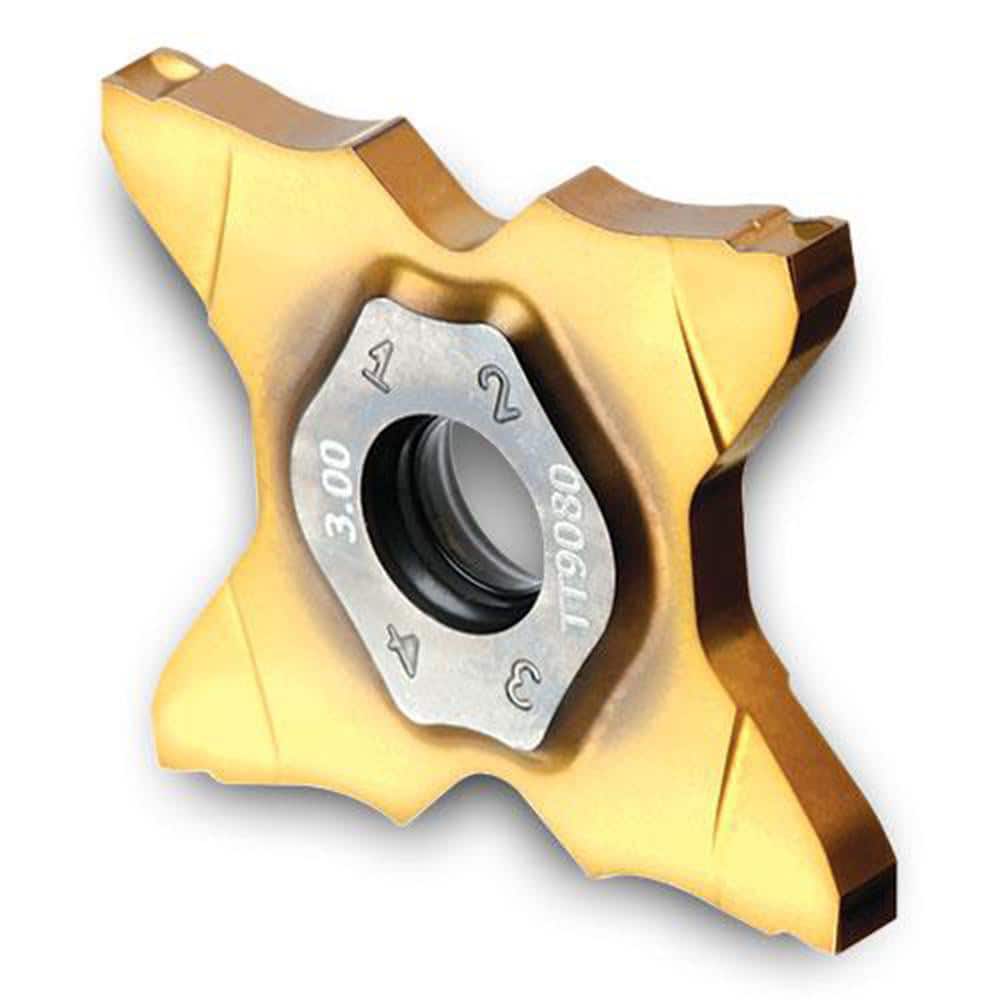

Grooving Insert: TQCC TT9080, Solid Carbide TiAlN & TiN Finish, Neutral, 0.157″ Cutting Width, Series TQC34
Item #: 13391313
Brand: Ingersoll Cutting Tools
Model #: 6174151
Product Specifications
Insert Style | TQC |
Insert Size Code | 34 |
Insert Material | Solid Carbide |
Manufacturer Grade | TT9080 |
Cutting Width (Decimal Inch) | 0.1570 |
Insert Holding Method | Screw |
Insert Hand | Neutral |
Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
Corner Radius (Decimal Inch) | 0.0120 |
Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
Lead Angle | 90 |
Rake | Positive |
Multi-use Tool | Yes |
Cutting Tool Application | Grooving; Parting |
Series | TQC34 |
Coating Process | PVD |
Primary Workpiece Material | Hard Material; Steel |
Chip Breaker | C |
Coating/Finish | TiN; TiAlN |
