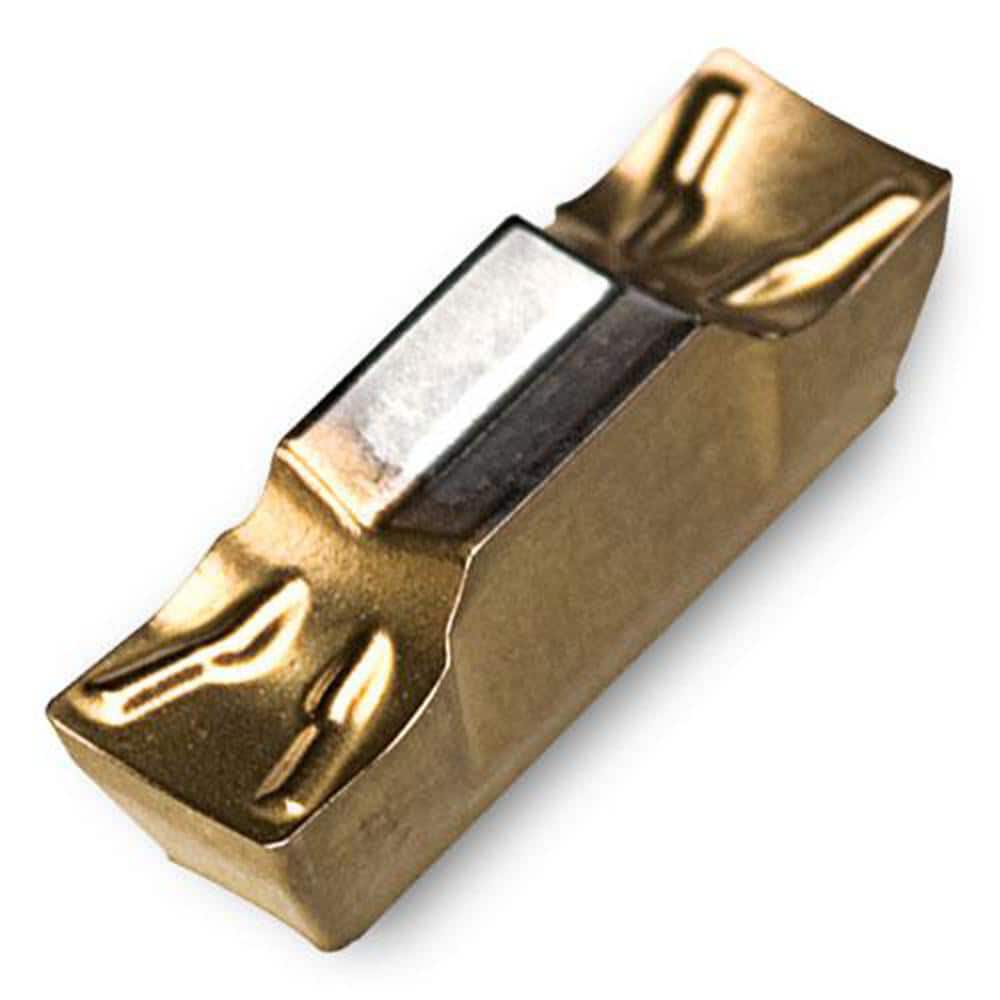

Grooving Insert: TDIMM TT9080, Solid Carbide TiAlN & TiN Finish, Neutral, 0.079″ Cutting Width, Series TDIM
Item #: 13391321
Brand: Ingersoll Cutting Tools
Model #: 6402249
Product Specifications
| Insert Style | TDIM |
| Insert Size Code | 2 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9080 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | TDIM |
| Coating Process | PVD |
| Rake Angle | 10.00 |
| Overall Length (Decimal Inch) | 0.3900 |
| Overall Length (mm) | 0.39 |
| Primary Workpiece Material | Hard Material; Steel |
| Chip Breaker | M |
| Coating/Finish | TiN; TiAlN |
