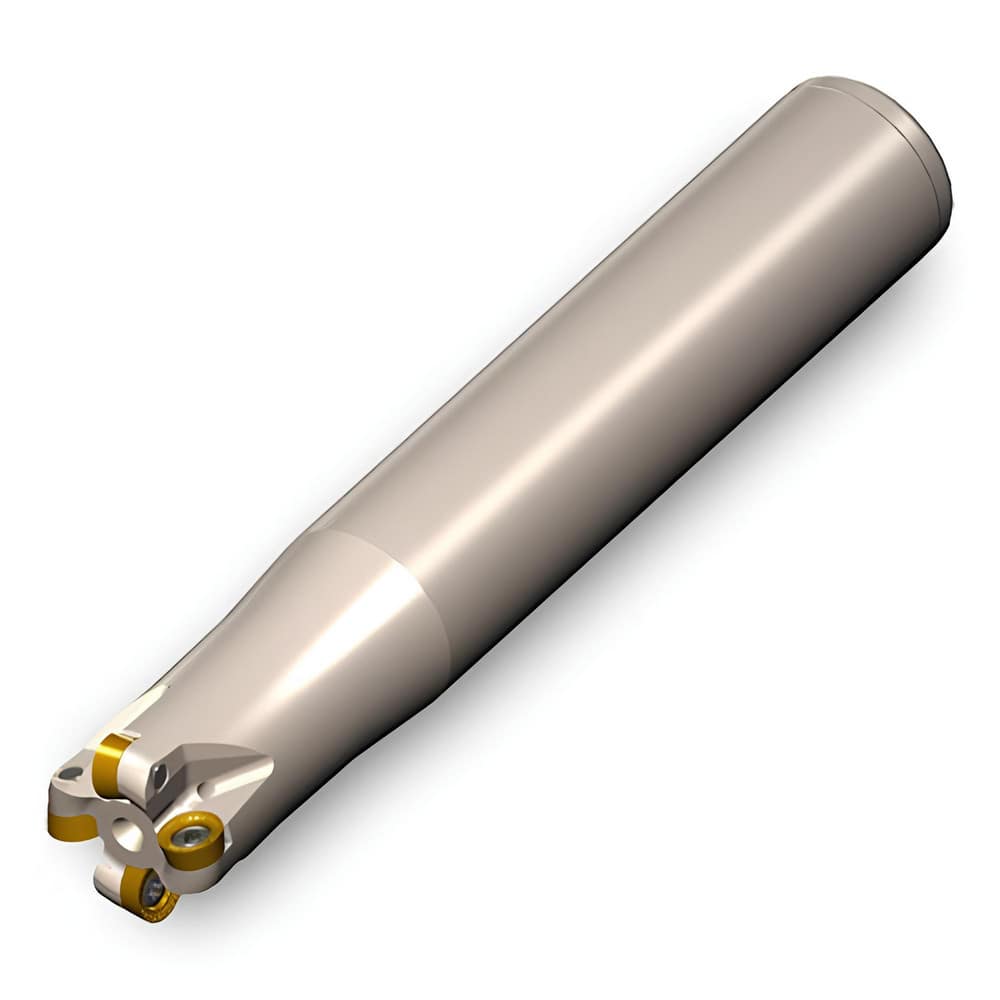

Indexable Copy End Mills; Maximum Depth Of Cut: 0.1574 in; Shank Type: Cylindrical; Toolholder Style: 15B8E; Shank Diameter (Inch): 0.6250; Shank Diameter (mm): 0.6250; Maximum Ramping Angle: 3.5 ™; Compatible Insert Style: RJET; Compatible Insert Size C
Item #: 14402507
Brand: Ingersoll Cutting Tools
Model #: 2919100
Product Specifications
| Maximum Depth Of Cut | 0.1574 in |
| Shank Type | Cylindrical |
| Toolholder Style | 15B8E |
| Shank Diameter (Inch) | 0.6250 |
| Shank Diameter (mm) | 0.6250 |
| Maximum Ramping Angle | 3.5 ? |
| Compatible Insert Style | RJET |
| Compatible Insert Size Code | 0803 |
| Number Of Cutter Inserts | 2 |
| Series | 15B8E |
| Overall Length (mm) | 1.50 |
| Overall Length (Decimal Inch) | 1.50 |
| Overall Length (Inch) | 1.50 |
| Flute Type | Straight |
| Tool Application | Facing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 0.3200 in |
| Head Length (Decimal Inch) | 1.1300 in |
| Head Length (Inch) | 1.1300 in |
| Shank Length (Decimal Inch) | 2.8400 in |
| Shank Length (mm) | 2.8400 in |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 in |
| Minimum Cutting Diameter (Decimal Inch) | 0.3200 in |
